The beam size of the S28 is approximately 6mmx5.5mm, with a beam divergence angle of about 1.4 milliradians. The guaranteed output power at the beam aperture is 28 watts, with individual output powers for each color laser source as follows: red 7W at 638nm, green 8W at 525nm, and blue 13W at 455nm.
The scanning speed of the fast galvanometer is 35kpps at 8°, with a maximum scanning angle of up to 50°.
The entire laser system features a sealed housing technology, achieving an IP65 rating for dust and water resistance. To ensure effective heat dissipation of the laser diodes during operation, we use indium to fill the micro gaps between the laser diodes and the heat sink in the process design. By accurately calculating the thermal power and rationally designing the heat sink area and radiator, the bottom of the unit achieves excellent heat dissipation, greatly enhancing the operational stability of the laser and significantly reducing maintenance requirements.

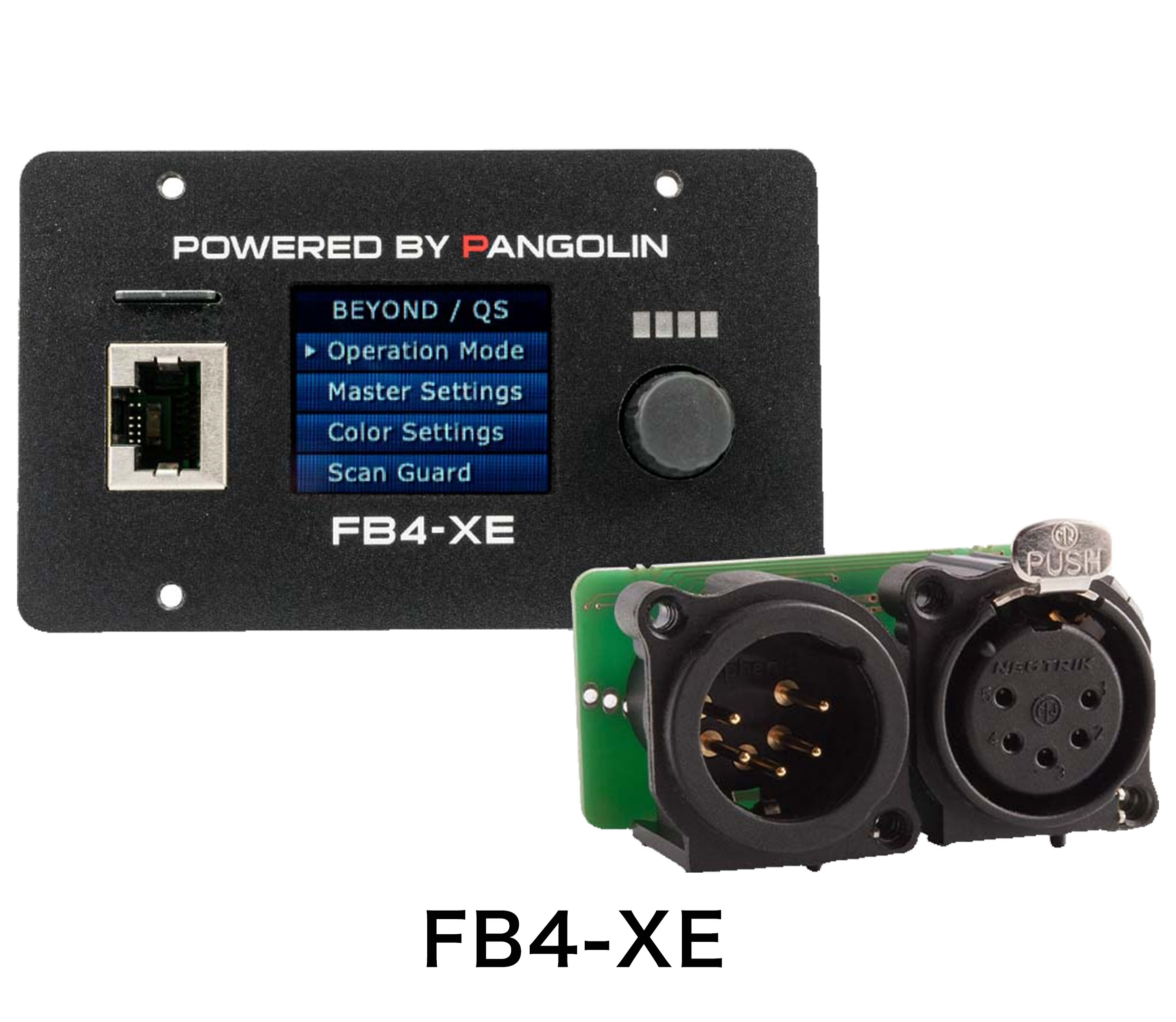

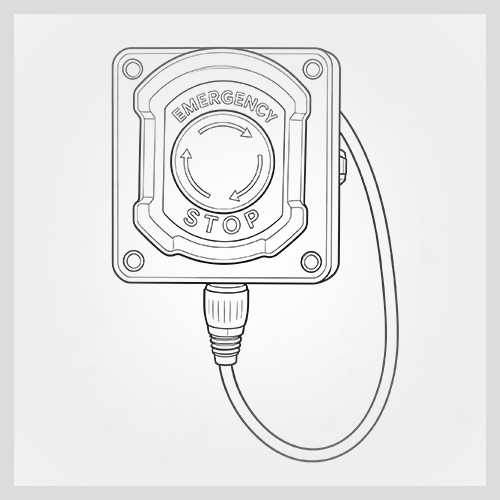

Each internal section of the laser device is equipped with an independent power supply to improve circuit stability. Through the built-in FB4 interface, the S28 offers multiple control options, including ILDA, DMX, and direct computer control via Ethernet (using QuickShow or BEYOND software). Safety measures include a European-standard remote emergency stop switch and a physical shutter.
This system is highly suitable for professional applications, particularly for medium to large-scale stage performances, large Disco venues, and any other large party settings.
Compatibility control：
Product Technical Parameters：
Laser Type：
Laser diode
Wavelength：
R638nm/G525nm/B455nm
Output Power：
7W/8W/13W
Beam Size (mm)：
6x5.5
Divergence(mrad)：
1.4
Max Scan Angle：
50°
Scan Rate：
35KPPS@8°
Control System：
FB4-16/39
Control Mode：
DMX/Artnet /Auto /PC
Protection Rating：
IP65
Operating Temperature：
0°C-40°0
Peak Power(Machine)：
<800 W
Input：
90-250VAC 50/60Hz
Safety：
Key Switch + Mechanical Shutter (<20ms Response) + OptionalRemote E-Stop (Daisy-chain Capable)
Product Weight：
26.5kg
Product Dimensions (mm)：
L468*W484*H217 (H403 w/ Bracket)

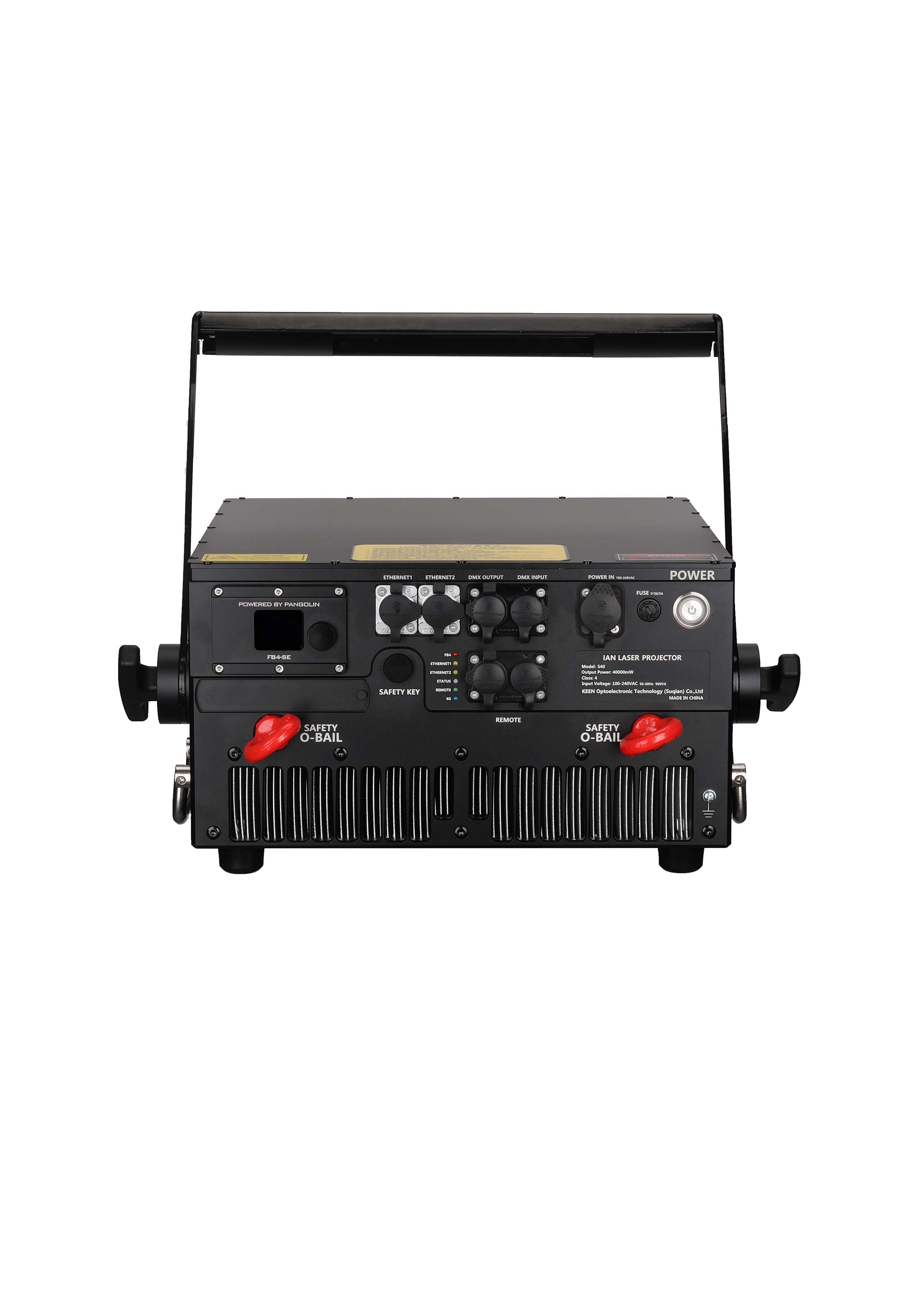

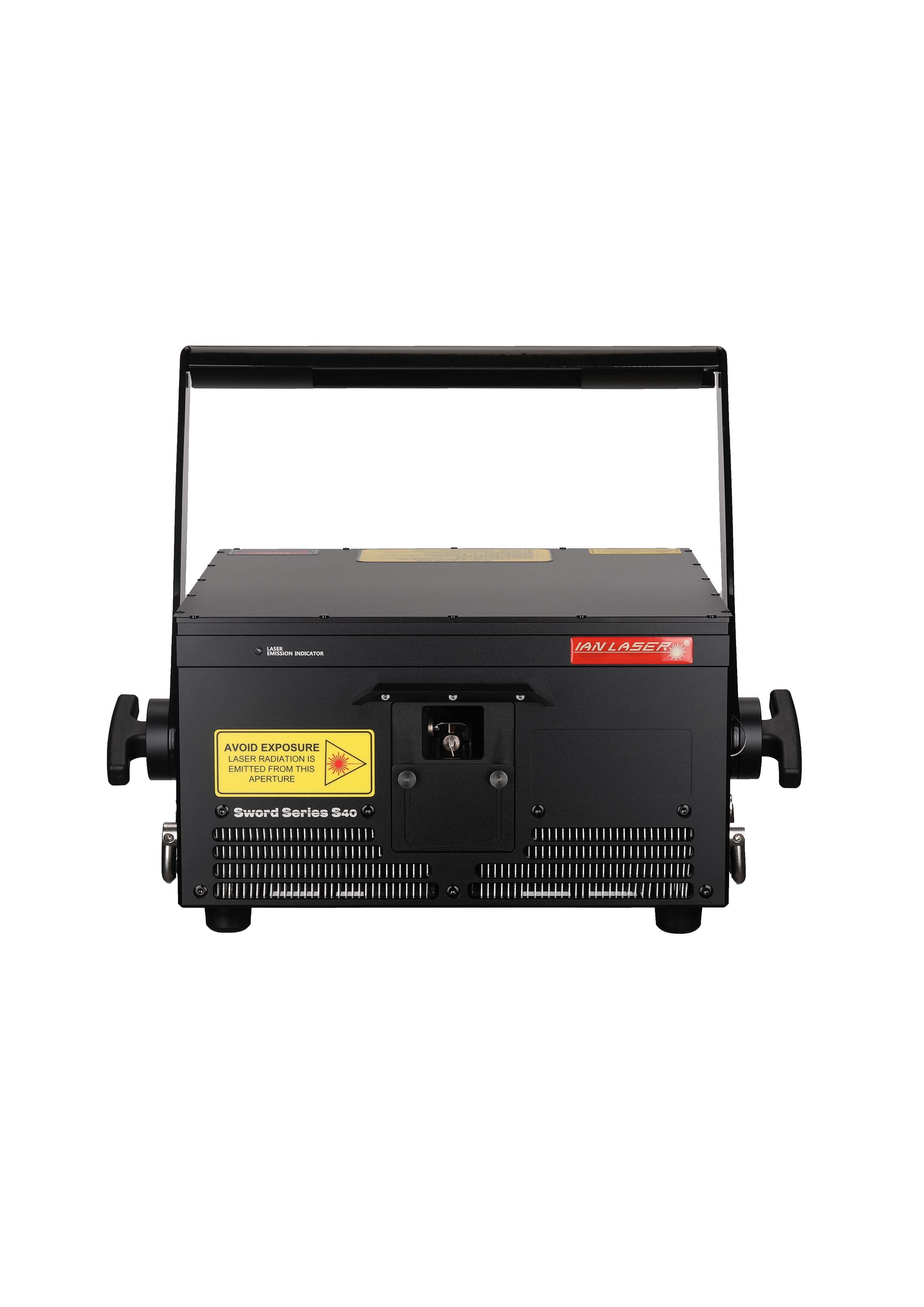

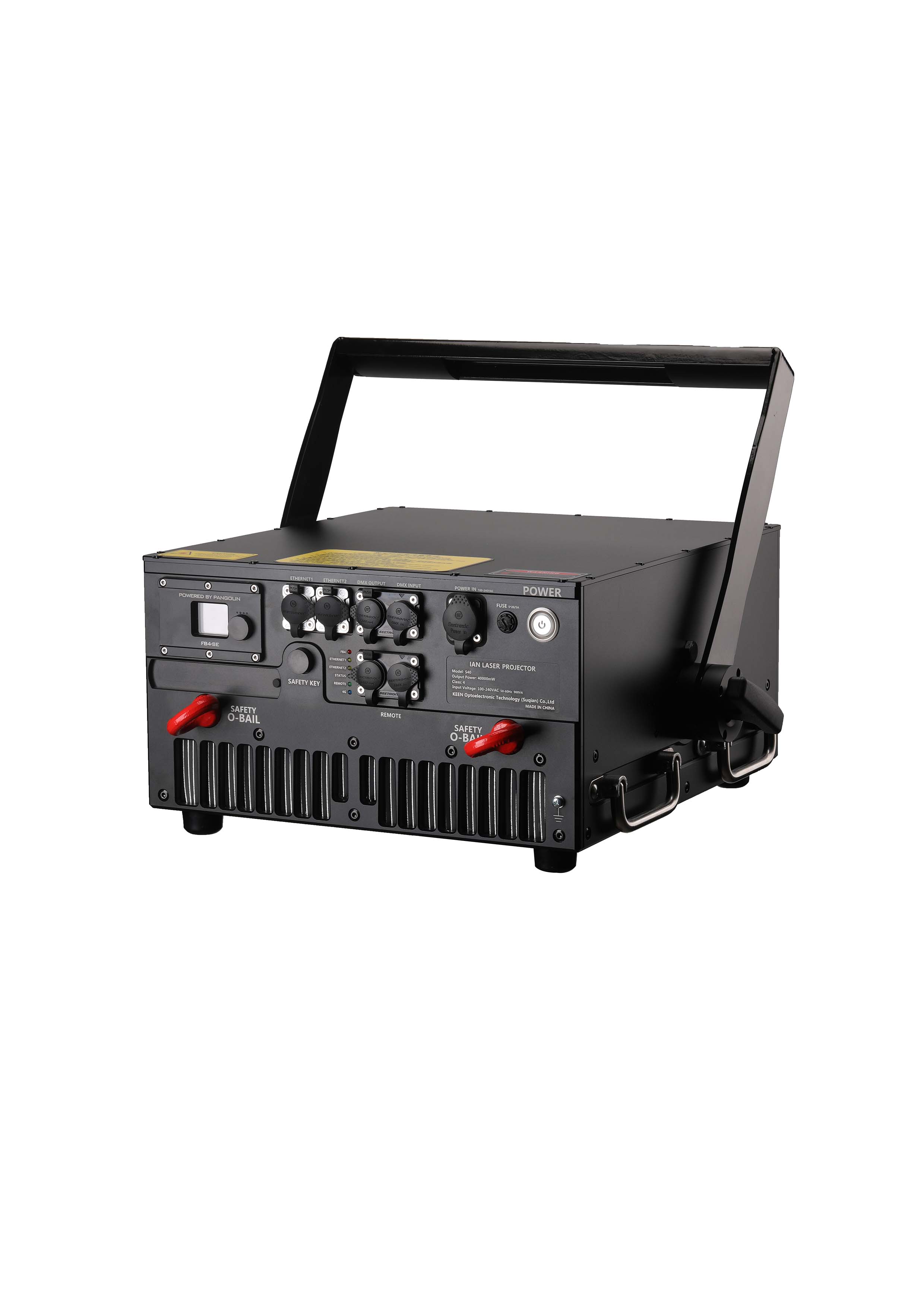

Rendering：
Product Video：

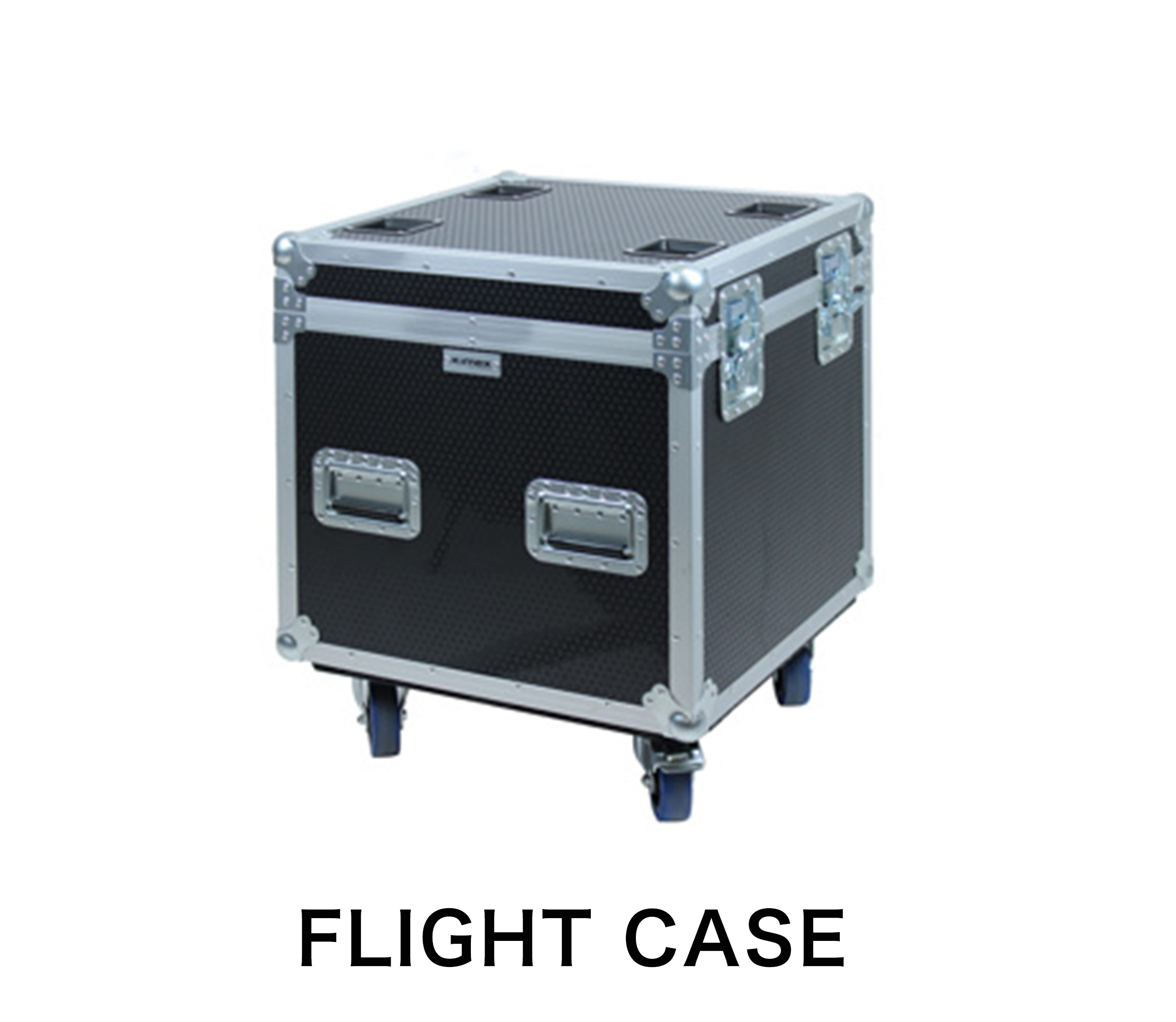

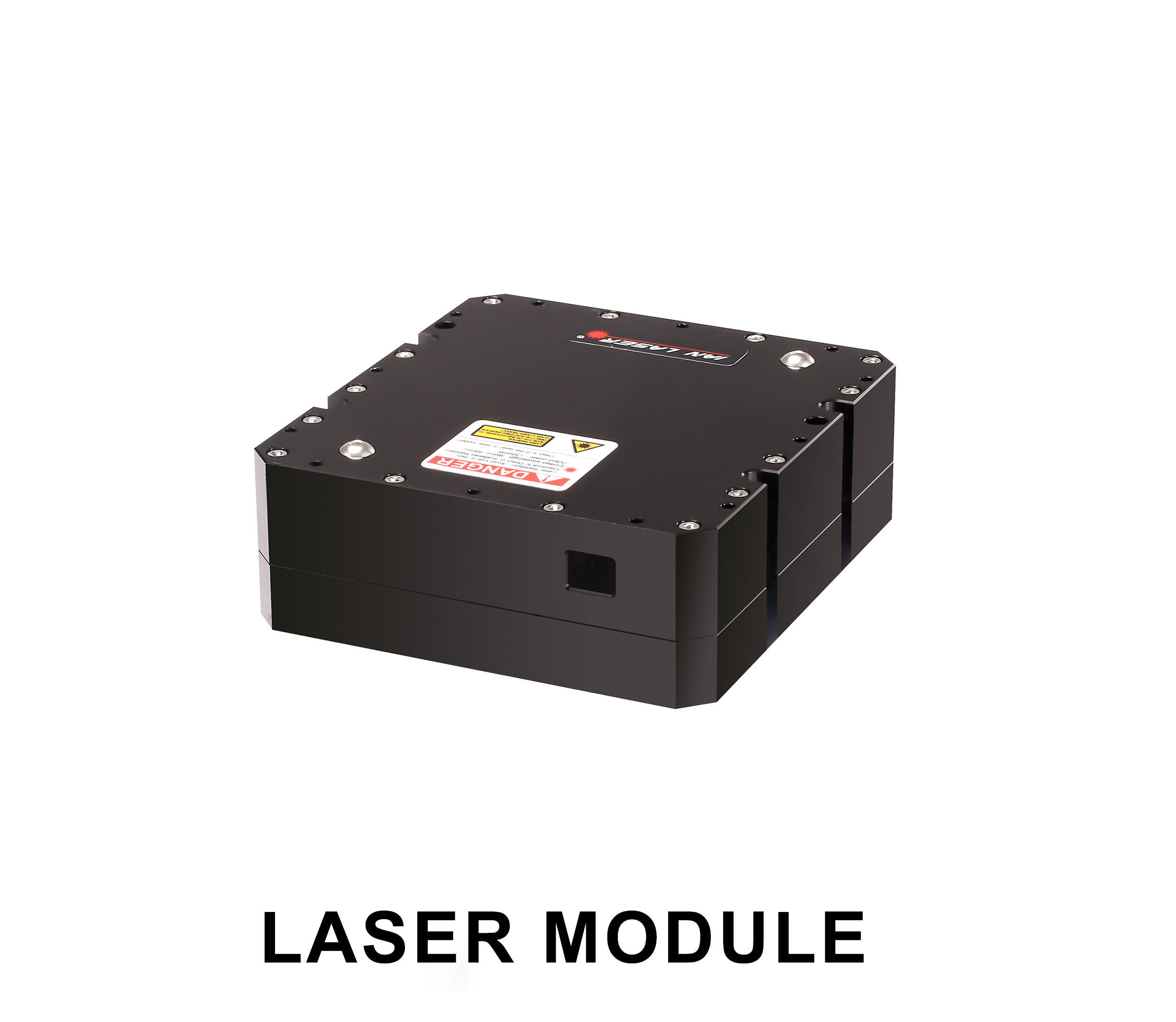

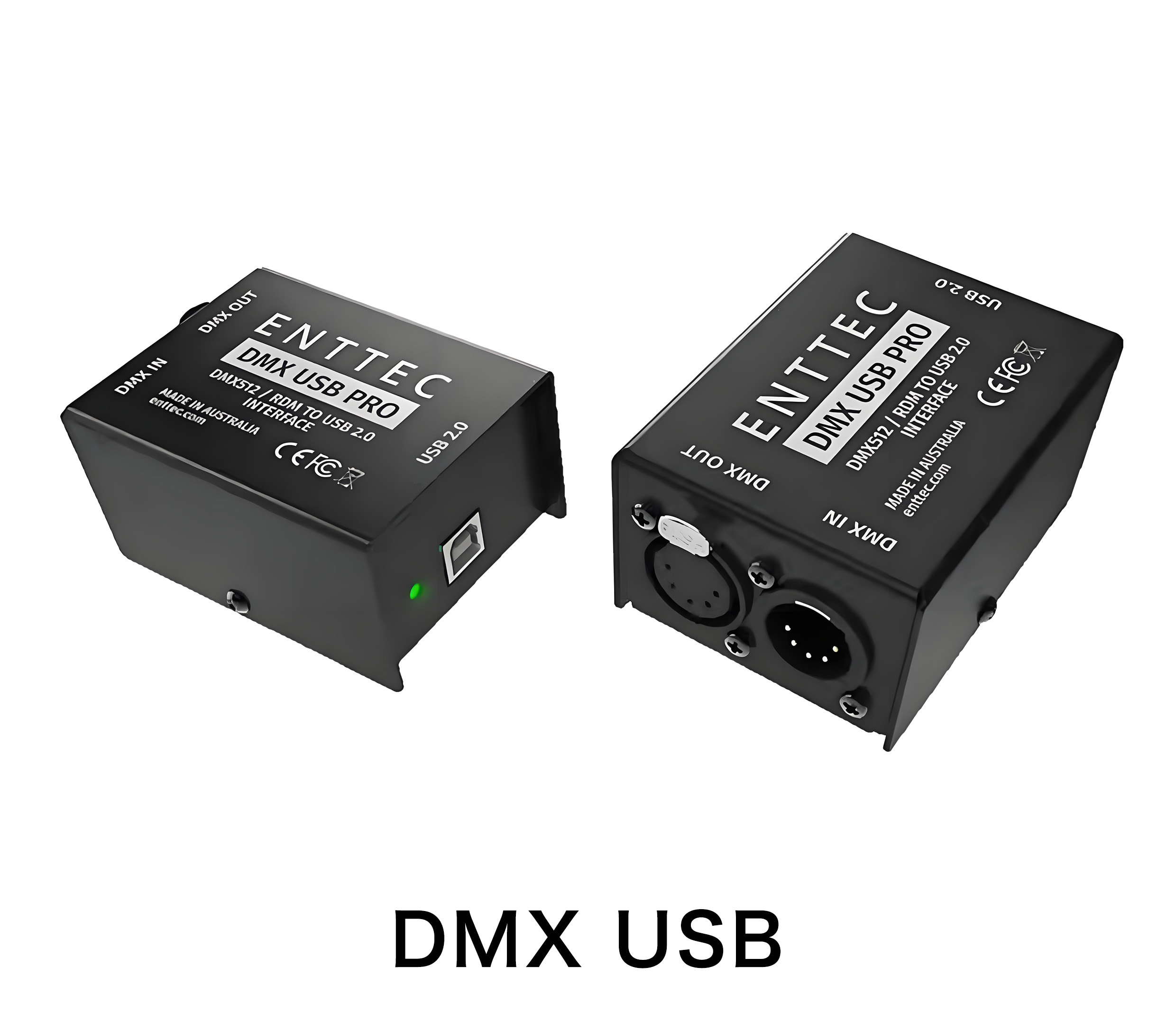

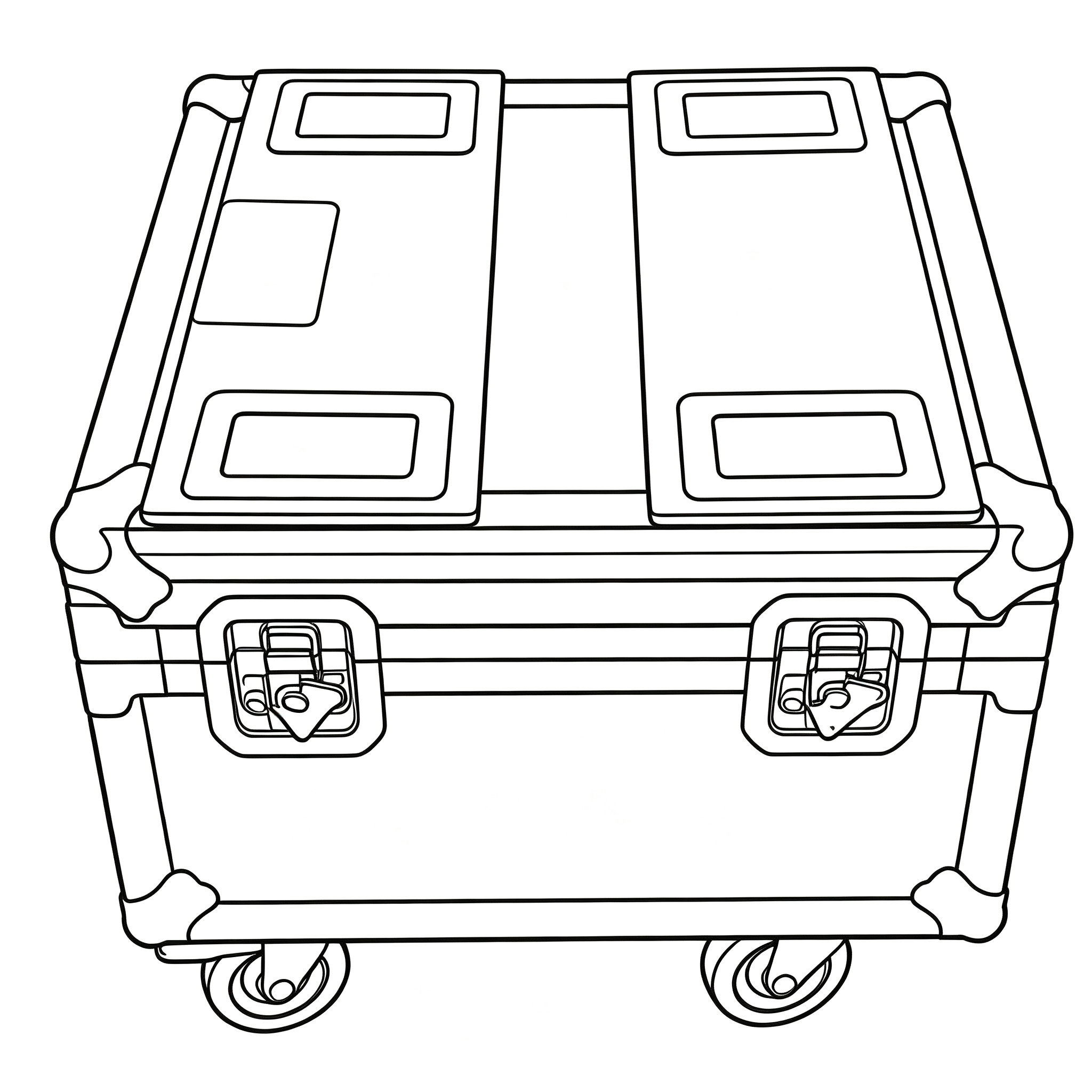

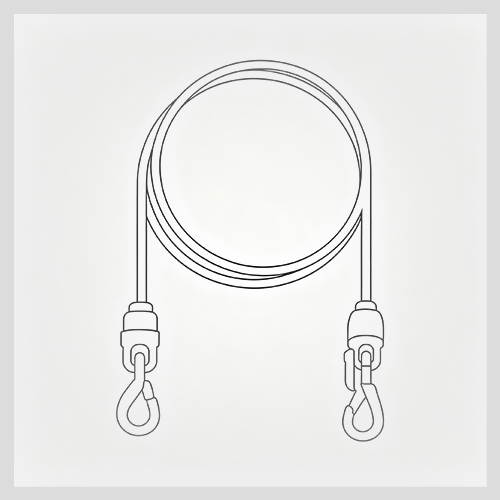

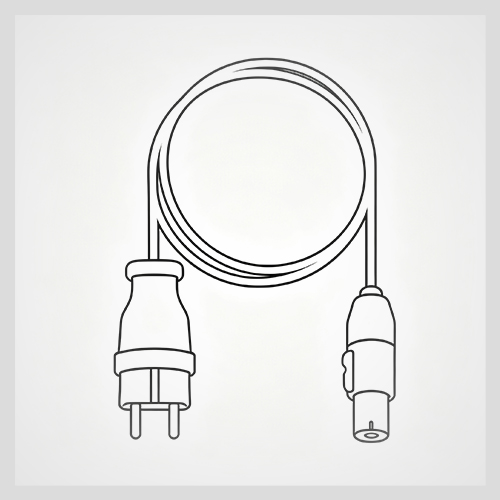

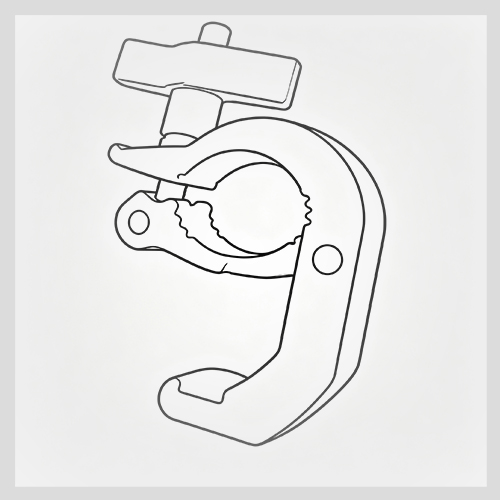

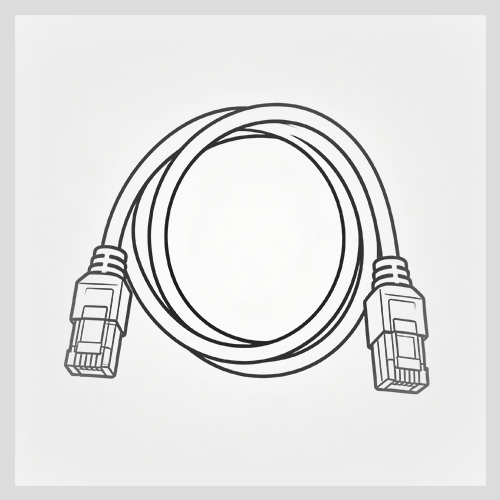

Related Accessories：
