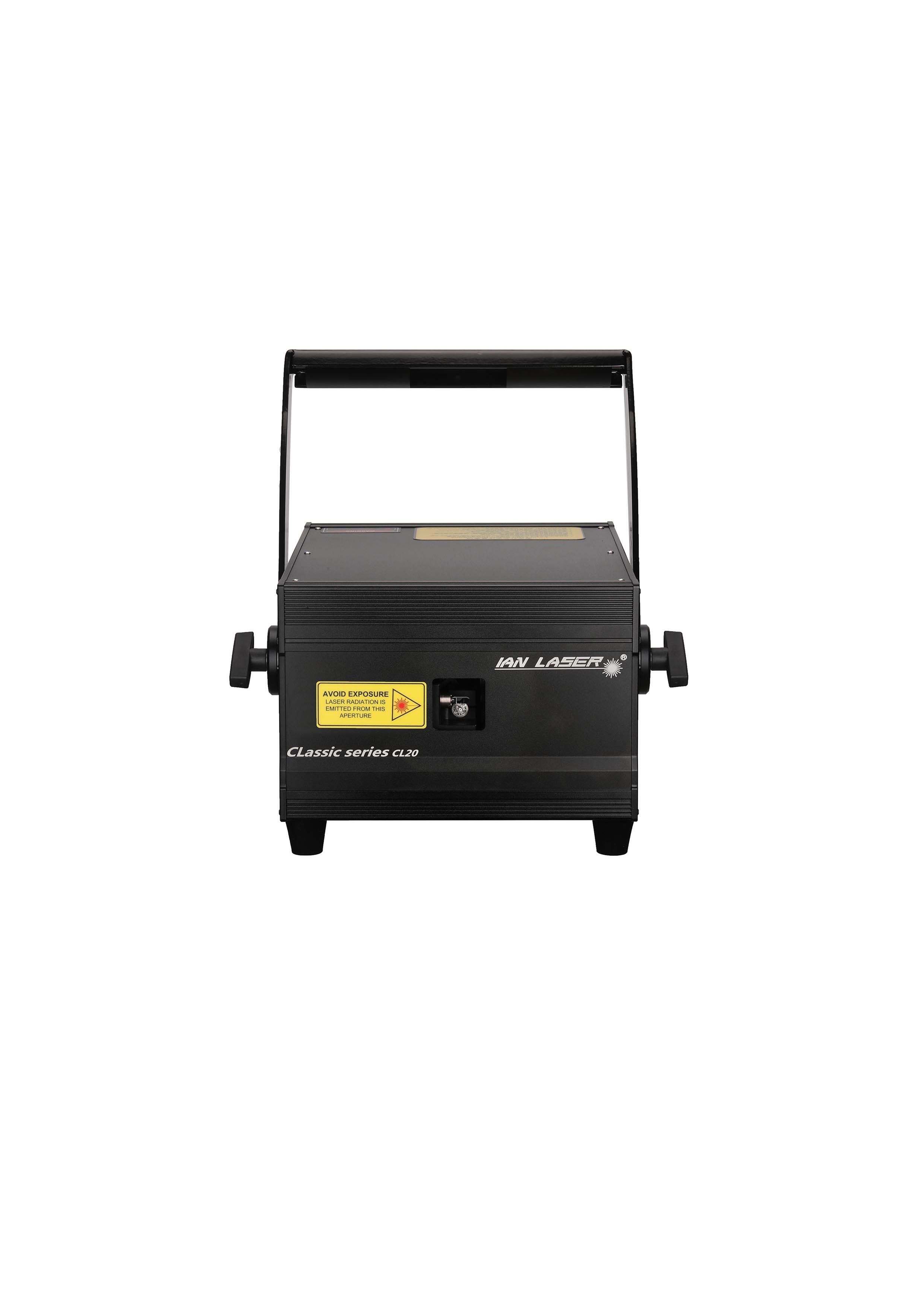

The CL20 laser system features a beam size of approximately 5.5 mm × 6.5 mm, with a beam divergence of around 1.6 mrad. At the aperture, the guaranteed output power is 40 watts, with individual laser source outputs as follows:
Red: 10 W @ 638 nm
Green: 12 W @ 525 nm
Blue: 12 W @ 455 nm + 12 W @ 465 nm (combined from two blue wavelengths totaling 24 W)
The high-speed galvo scanning system achieves 38 kpps @ 8°, with a maximum scanning angle of up to 60°.

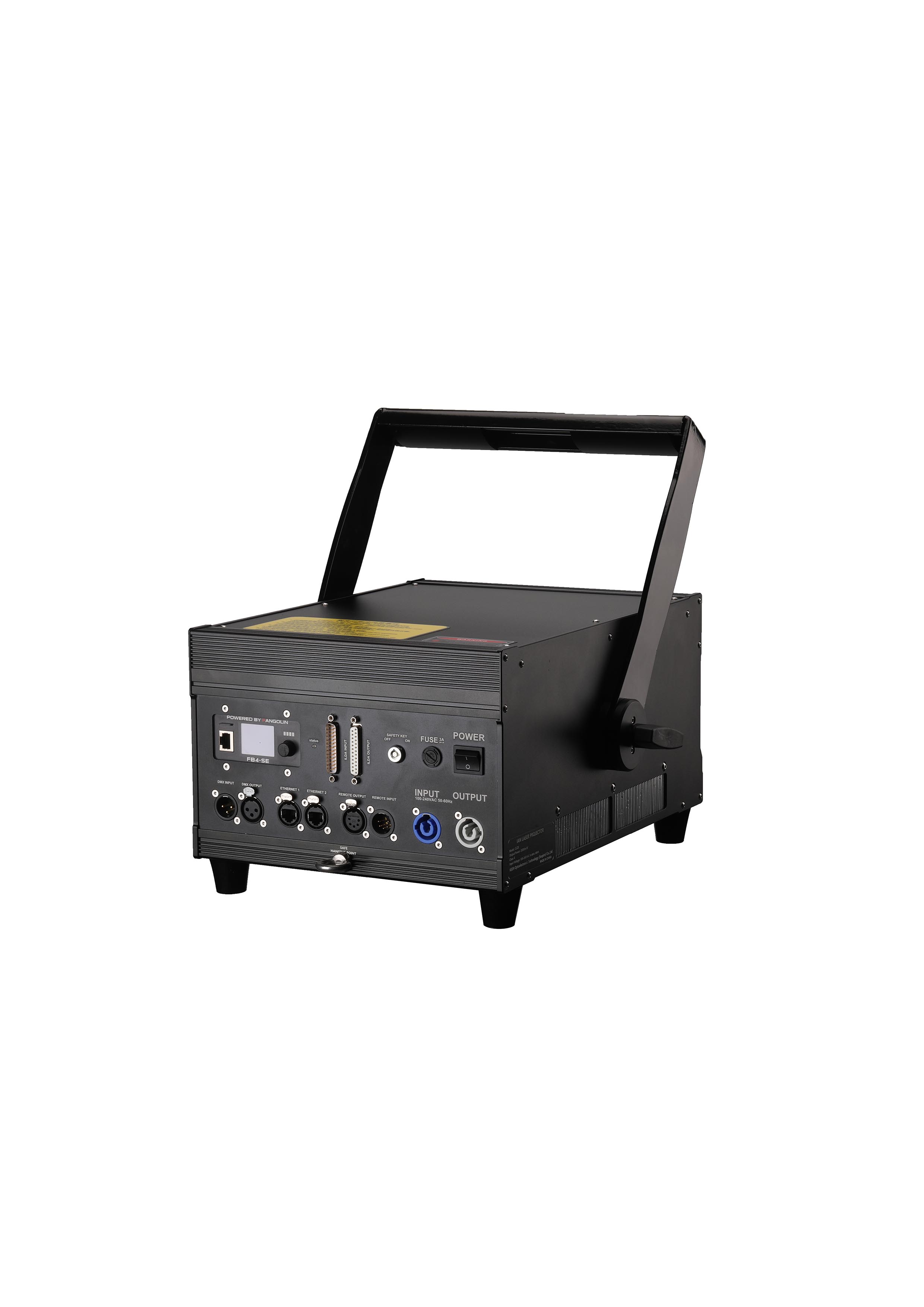

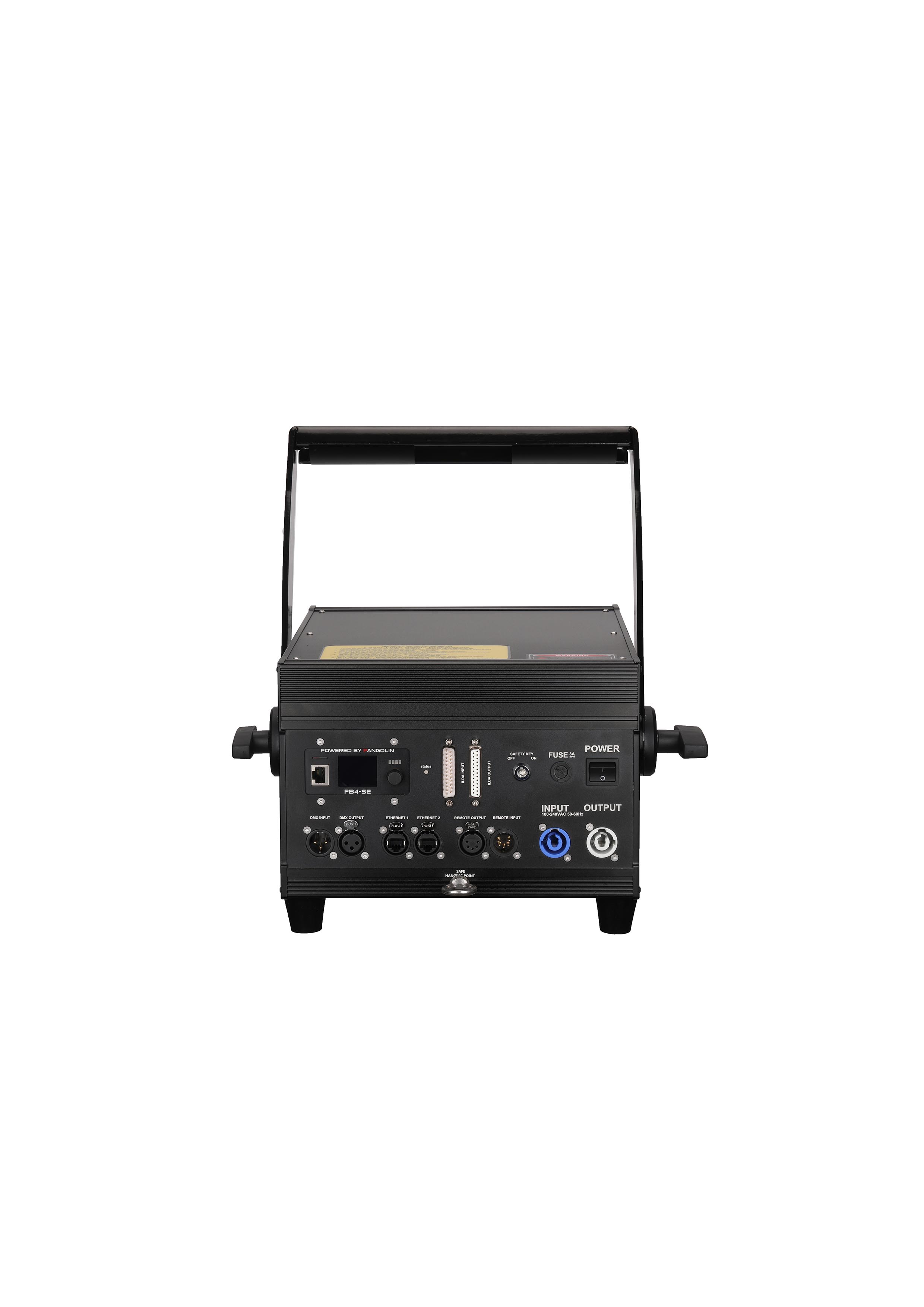

Each internal module of the laser unit is powered by an independent power supply, enhancing circuit stability. With a built-in FB4 interface, the CL20 offers a range of control options, including ILDA, DMX, and direct Ethernet control (compatible with QuickShow or BEYOND software).

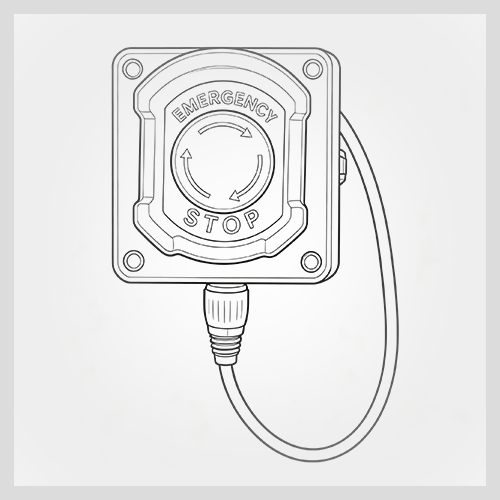

Safety features include a European-standard remote emergency stop switch and a physical shutter.
The CL20 is well-suited for medium-sized stage performances, conference halls, nightclubs, and similar venues.
Compatibility control：
Product Technical Parameters：
Rendering：
Product Video：

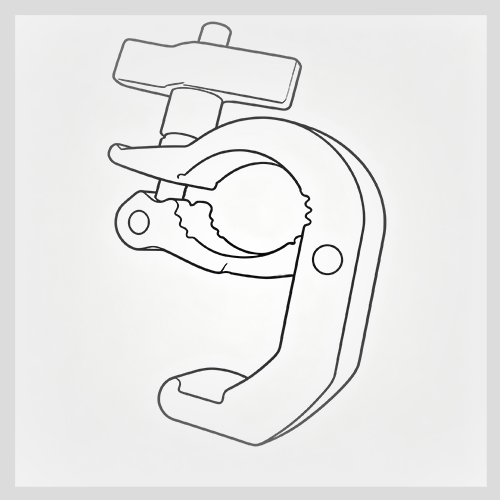

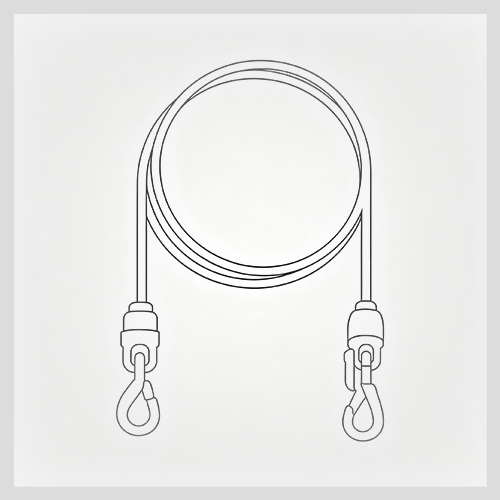

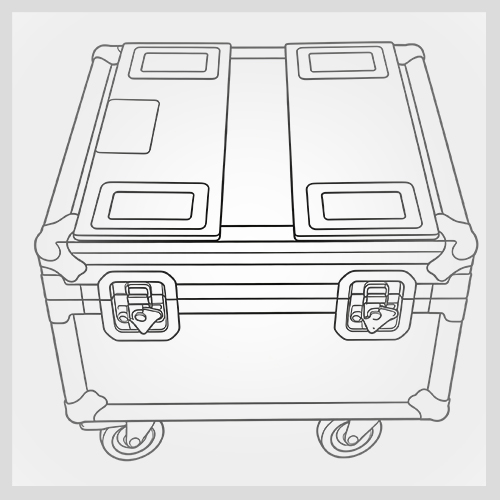

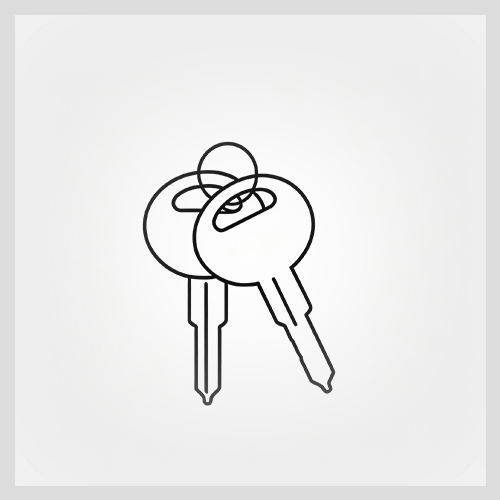

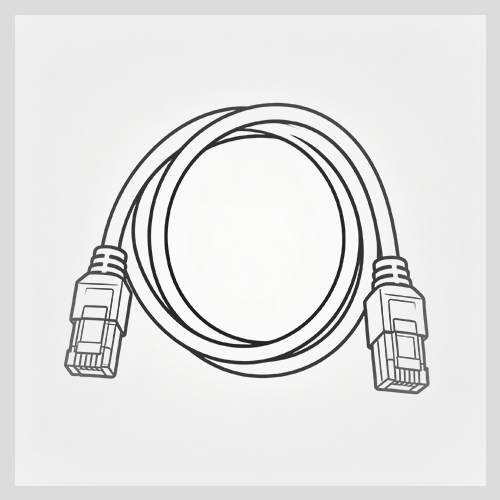

Related Accessories：
