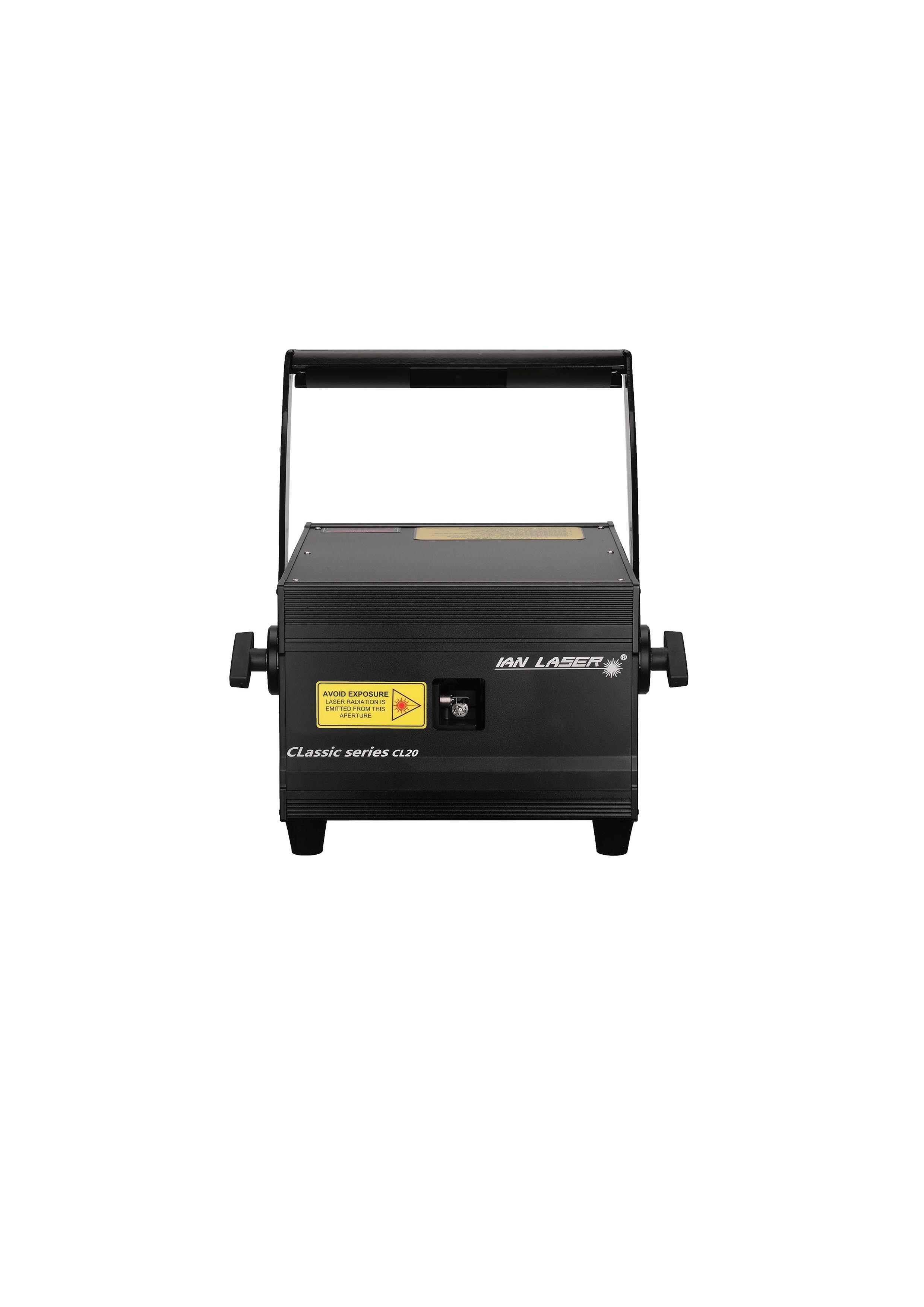

This product is the second-generation upgrade of the classic series. Engineered for lighting professionals, it delivers reliable performance for nightly shows with outstanding cost efficiency and refined color reproduction. Featuring a field-tested housing and reinforced internal components, it easily withstands high temperatures, transportation shocks and long-duration continuous operation, making it ideal for touring crews, permanent installation projects and equipment rental companies. Power options range from 15W to 24W, allowing lighting designers to select the exact model to match venue requirements. Designed for long-term operation, it boasts long maintenance intervals and extended service life, minimizing downtime and maximizing value for venues and production teams. Capable of handling heavy performance schedules, the system produces professional-grade colors, dynamic beam effects and dependable stability the moment it powers on.
Compatibility control：
Product Technical Parameters：
Source/Type：
Semiconductor laser diode | IP60 | Full-colour RGB laser
Wavelengths [(nm), ±5nm]：
R638/G525/B455
Output Power：
6.5W/7.2W/10W
Beam size [mm]：
6 x 5
Beam divergence [mrad]：
<1.6
X-Y scanners：
45KPPS@8° MAX50°
System Control：
FB4(ArtNet, DMX | PC, Lighting Console or Autoplay)
Operation temperature [°C]：
0°C-40℃
Max. power consumption [VA]：
470
Power requirements [V] | Input：
90-250VAC 50/60Hz
Weight [kg]：
13.6
Size [WxHxD, mm]：
377x215x418(H405/Bracket)
HW features：
All basic system settings can be configured via the system control interface, including power adjustment for each colour, X/Y axis inversion, as well as X/Y axis image size and position parameters.

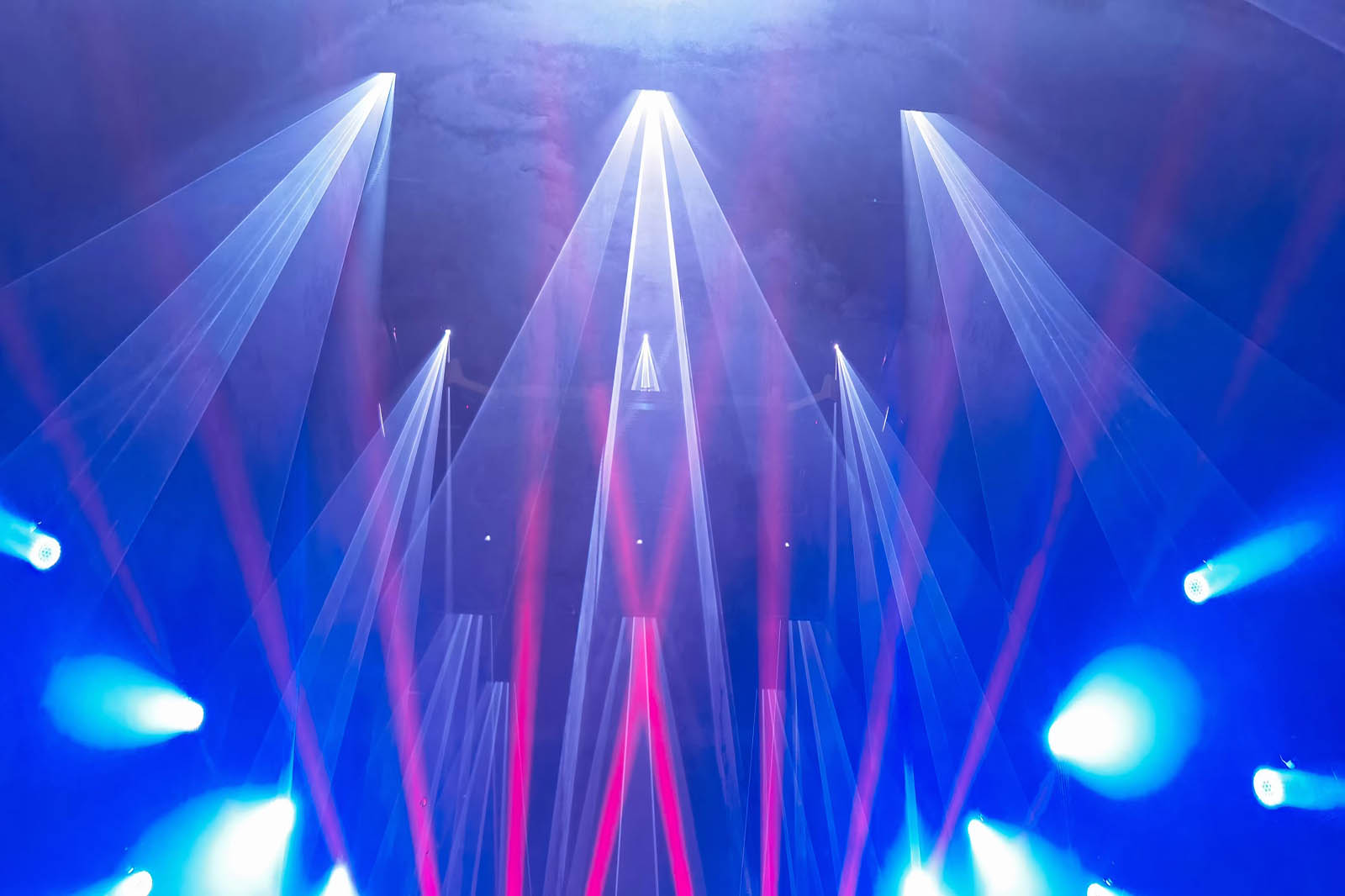

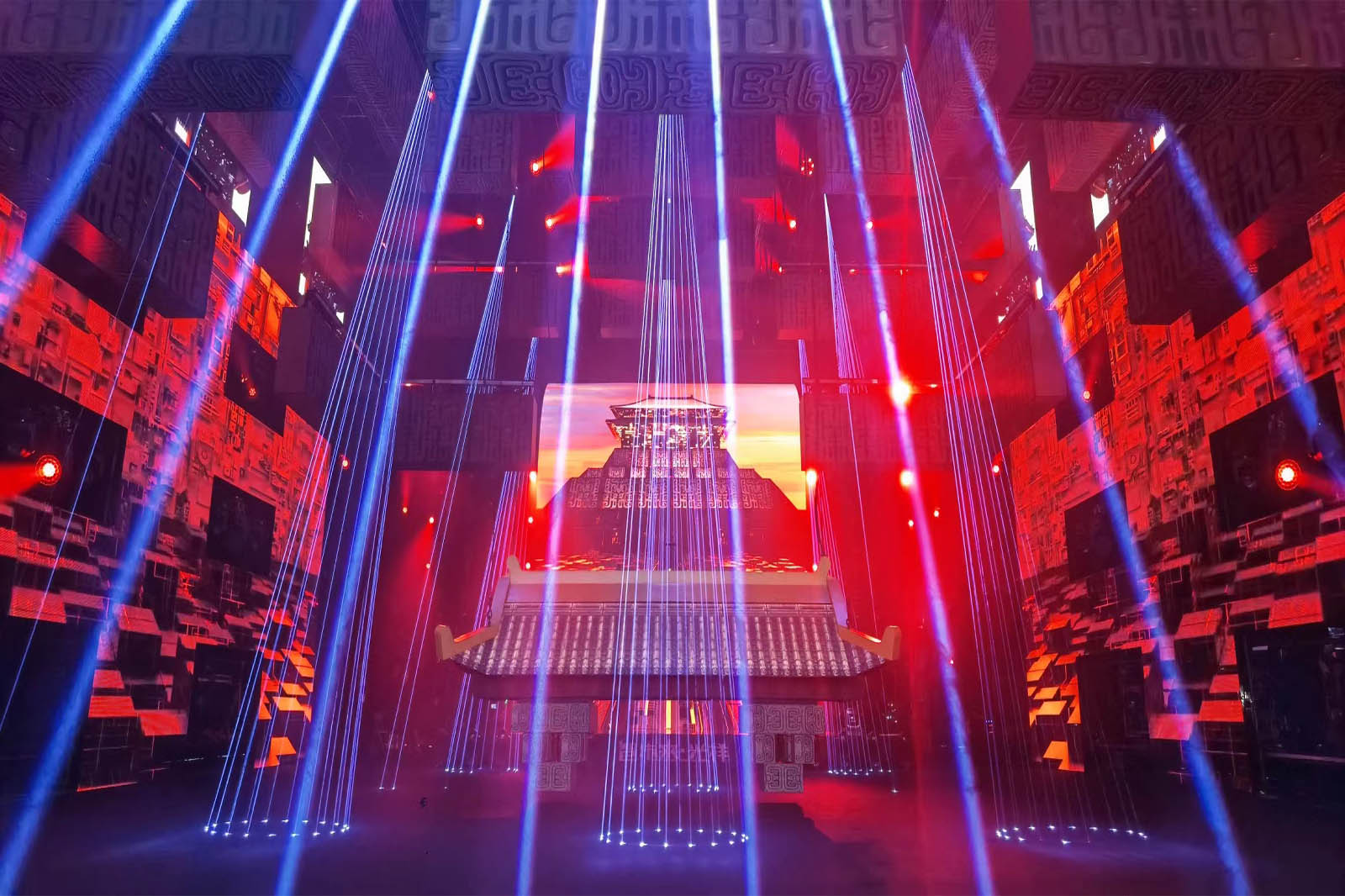

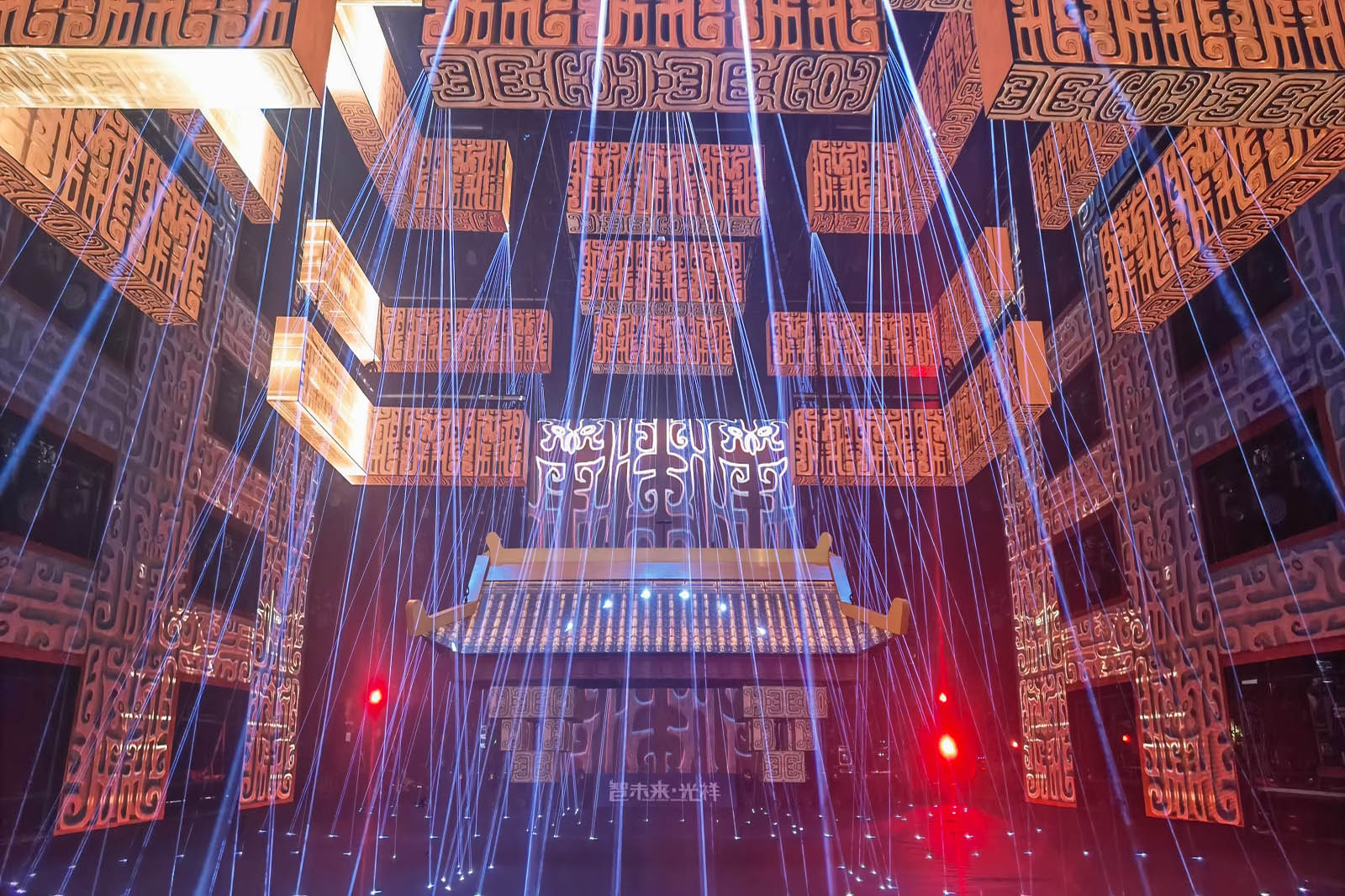

Rendering：
Product Video：

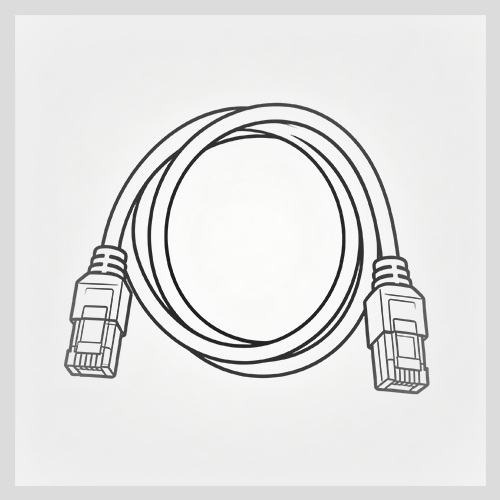

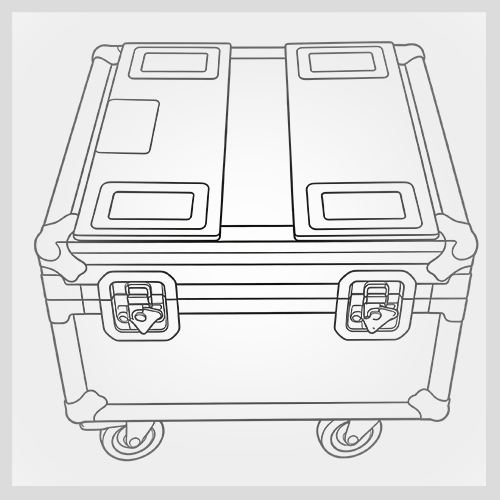

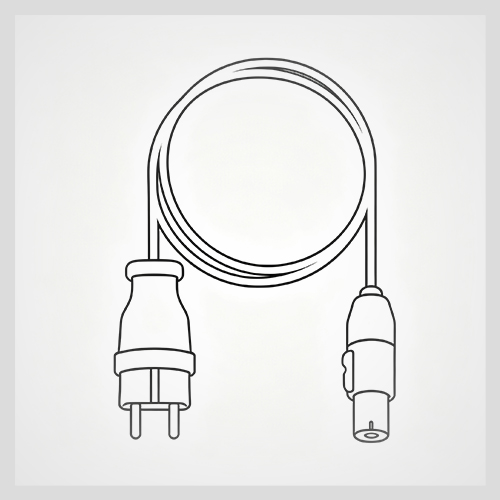

Related Accessories：
Downloads：
