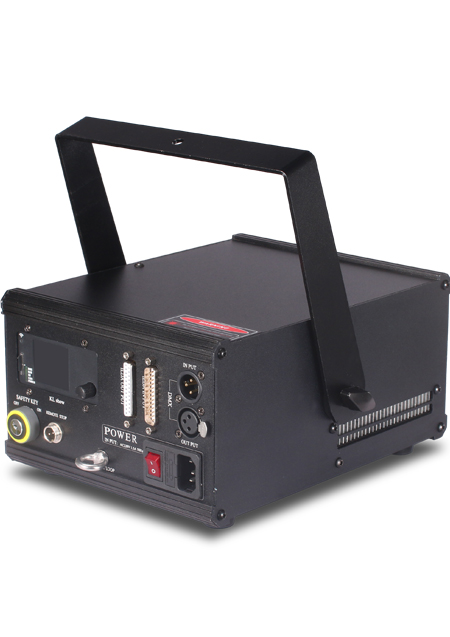

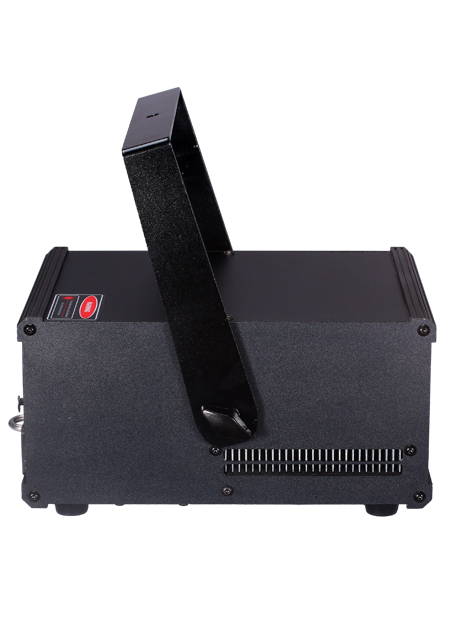

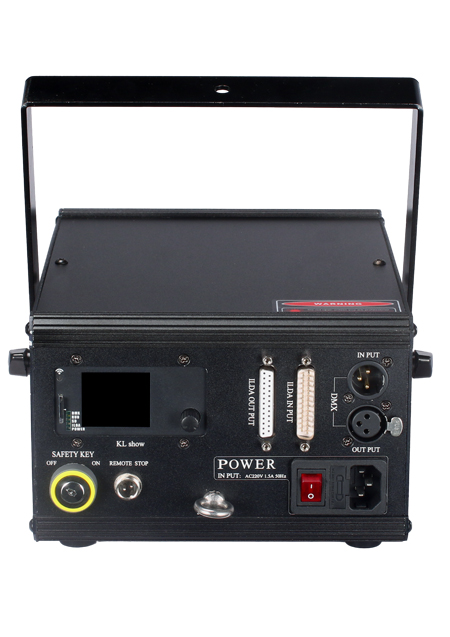

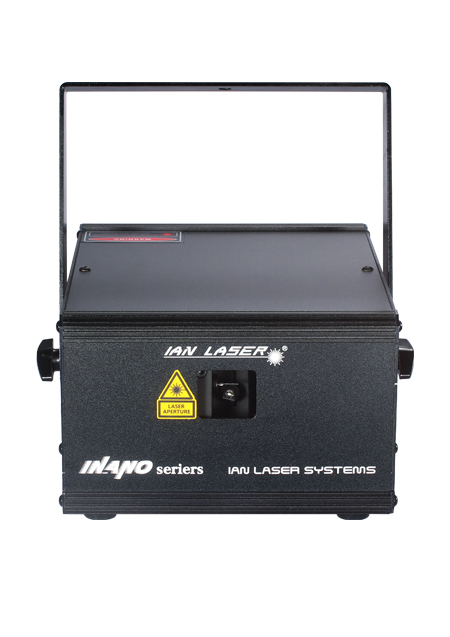

The P5 features a compact housing with anti-smoke contamination design. Lightweight and fitted with a sturdy bracket, it supports multiple installation methods and can be mounted either hanging or standing. It is ideal for mobile DJ performances and temporary laser shows, and can also be permanently installed on trusses or ceilings. Its laser sources deliver vibrant colors and powerful beams. With the built-in control system and sound-activated mode, the P5 can project more than 200 patterns (layers, tunnels, grids, waves and more) with adjustable colors and speeds. In auto mode, preset patterns play automatically without manual operation. In sound-activated mode, the laser outputs visual effects in sync with music beats. Besides the above modes, the P5 supports master-slave mode. Slave units of the same model can mirror the laser output of the master unit via DMX connection. For professional applications, the P5 supports ILDA control. It can connect to a PC and work with laser control software to play custom or pre-programmed laser shows, logos, texts, graphics and animations. The P5 is suitable for small and semi-professional scenarios, especially bars, small & medium clubs and disco venues. It is also available for mobile DJs, personal use and all types of party events.
Compatibility control：
Product Technical Parameters：
Source/Type：
Semiconductor laser diode | IP60 | Full-colour RGB laser
Wavelengths [(nm), ±5nm]：
R638/G525/B455
Output Power：
1200mW/1200mW/2800mW
Beam size [mm]：
6 x 6
Beam divergence [mrad]：
<1.6
X-Y scanners：
25KPPS@8° MAX50°
System Control：
S5(DMX, ILDA | Lighting Console or Autoplay)
Operation temperature [°C]：
0°C-40℃
Max. power consumption [VA]：
72
Power requirements [V] | Input：
90-250VAC 50/60Hz
Weight [kg]：
3.5
Size [WxHxD, mm]：
250x135x275
HW features：
All basic system settings can be configured via the system control interface, including power adjustment for each colour, X/Y axis inversion, as well as X/Y axis image size and position parameters.
Rendering：
Product Video：

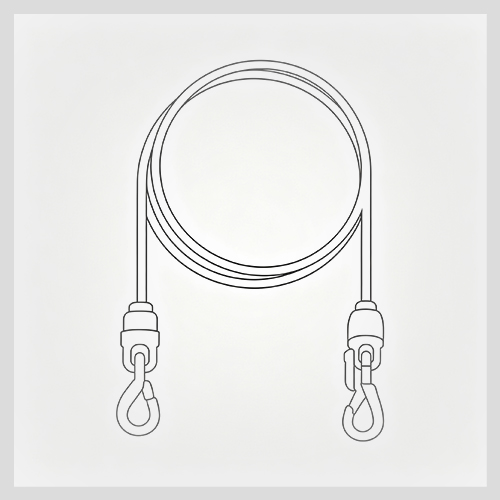

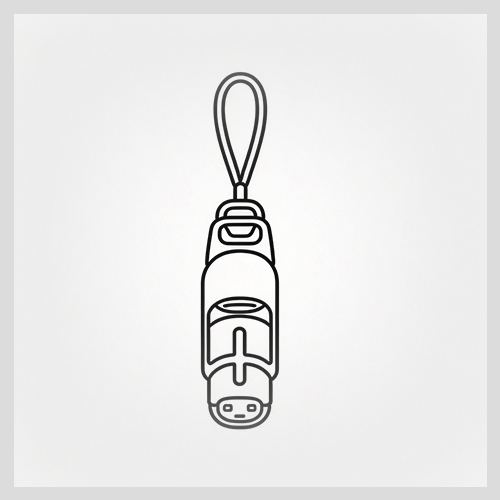

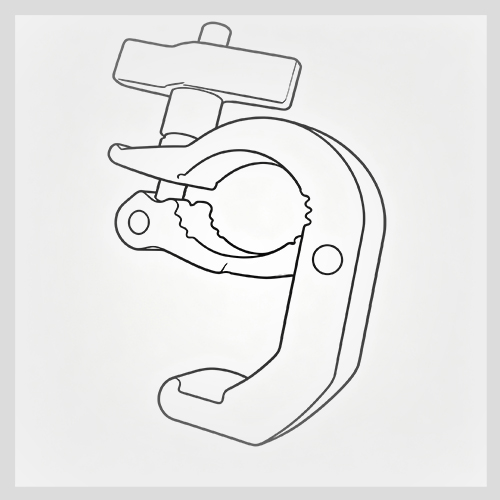

Related Accessories：
