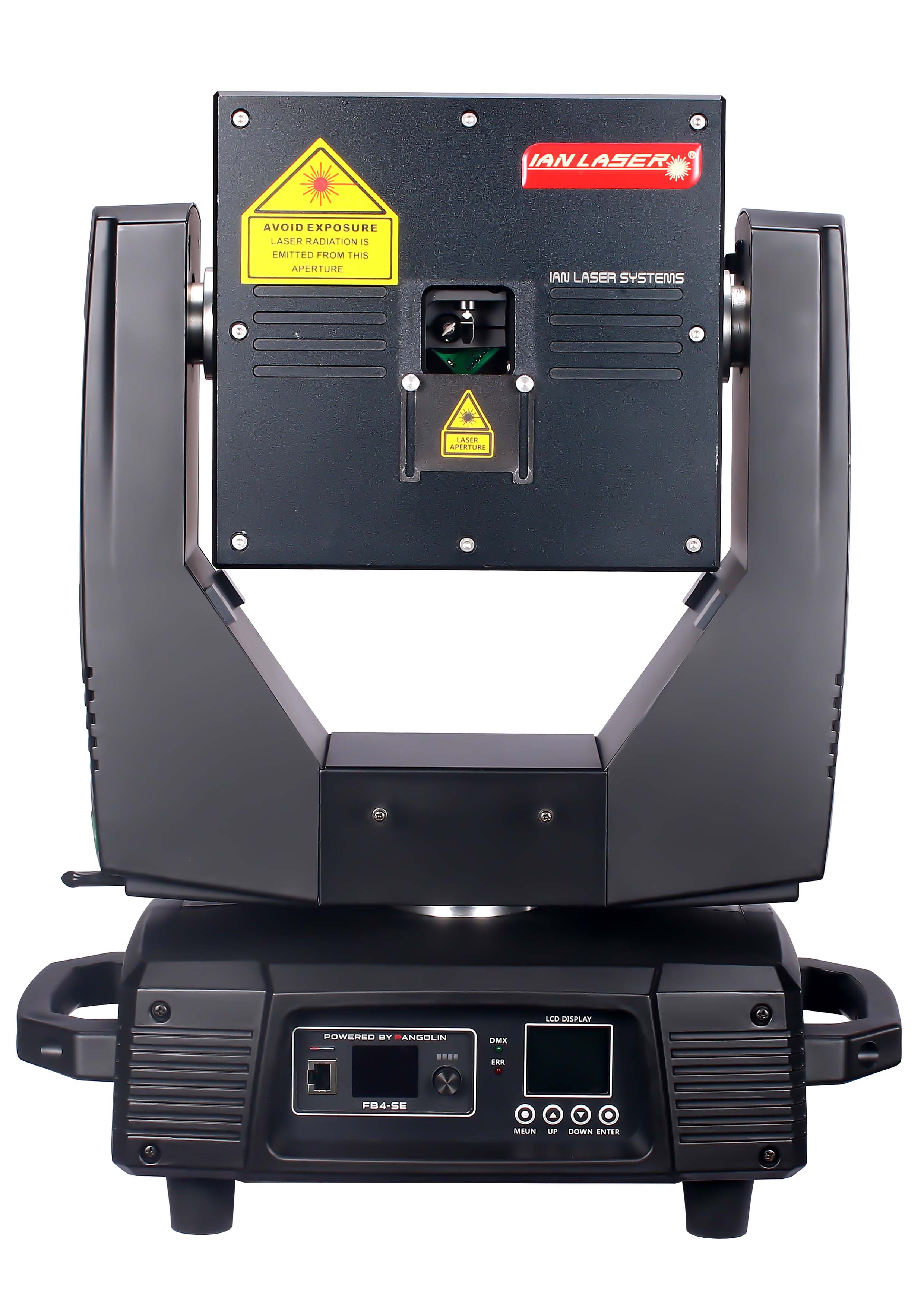

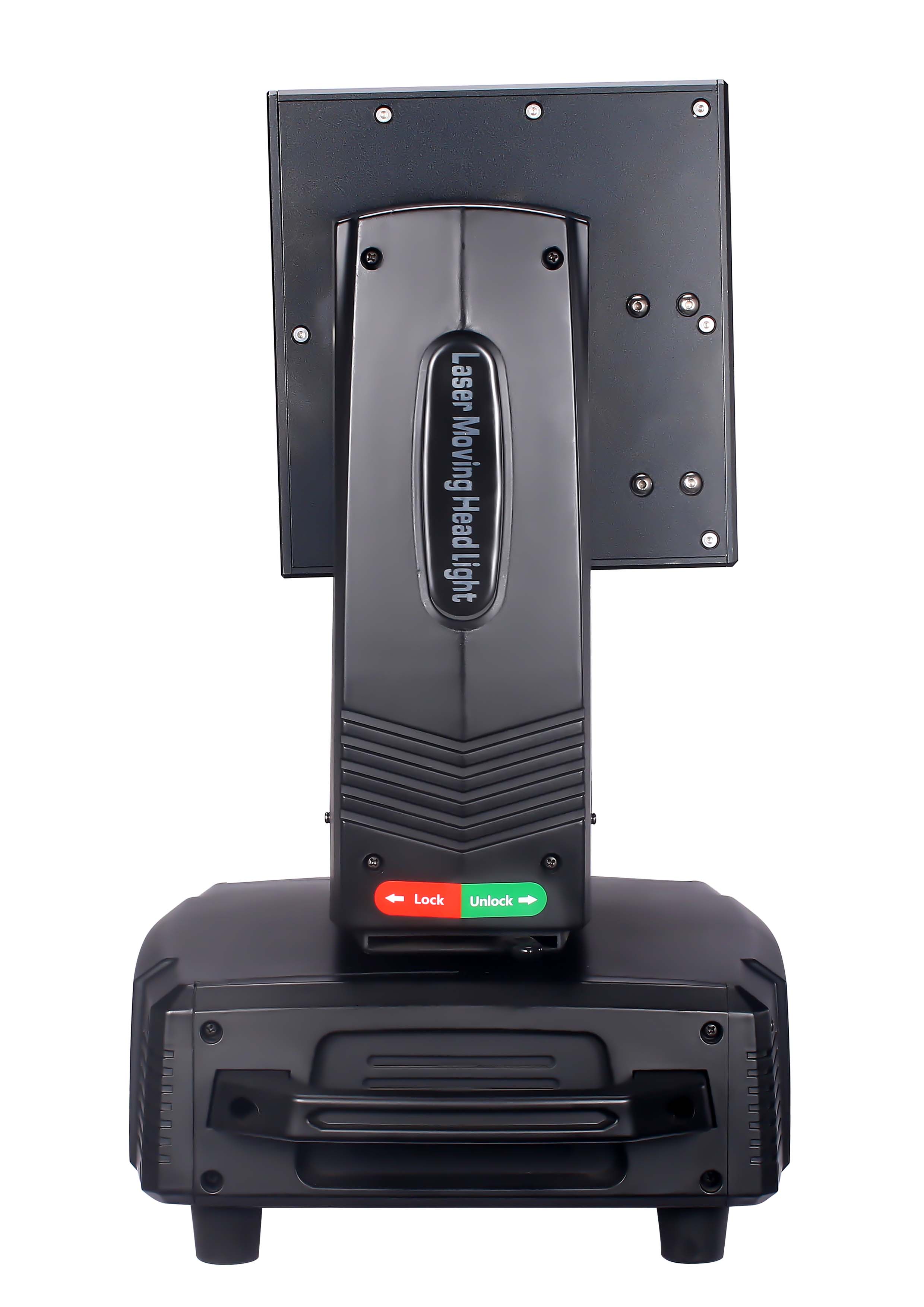

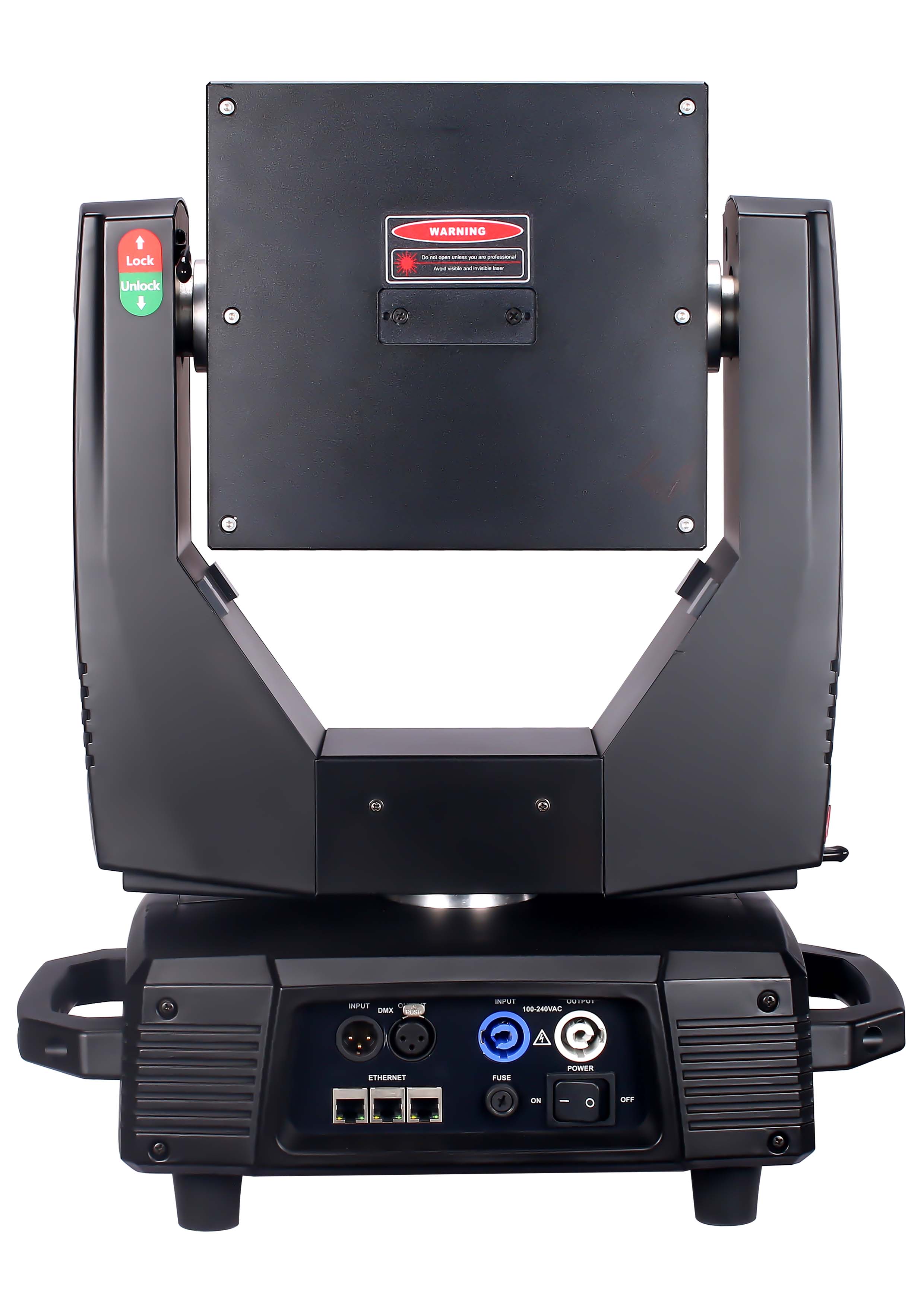

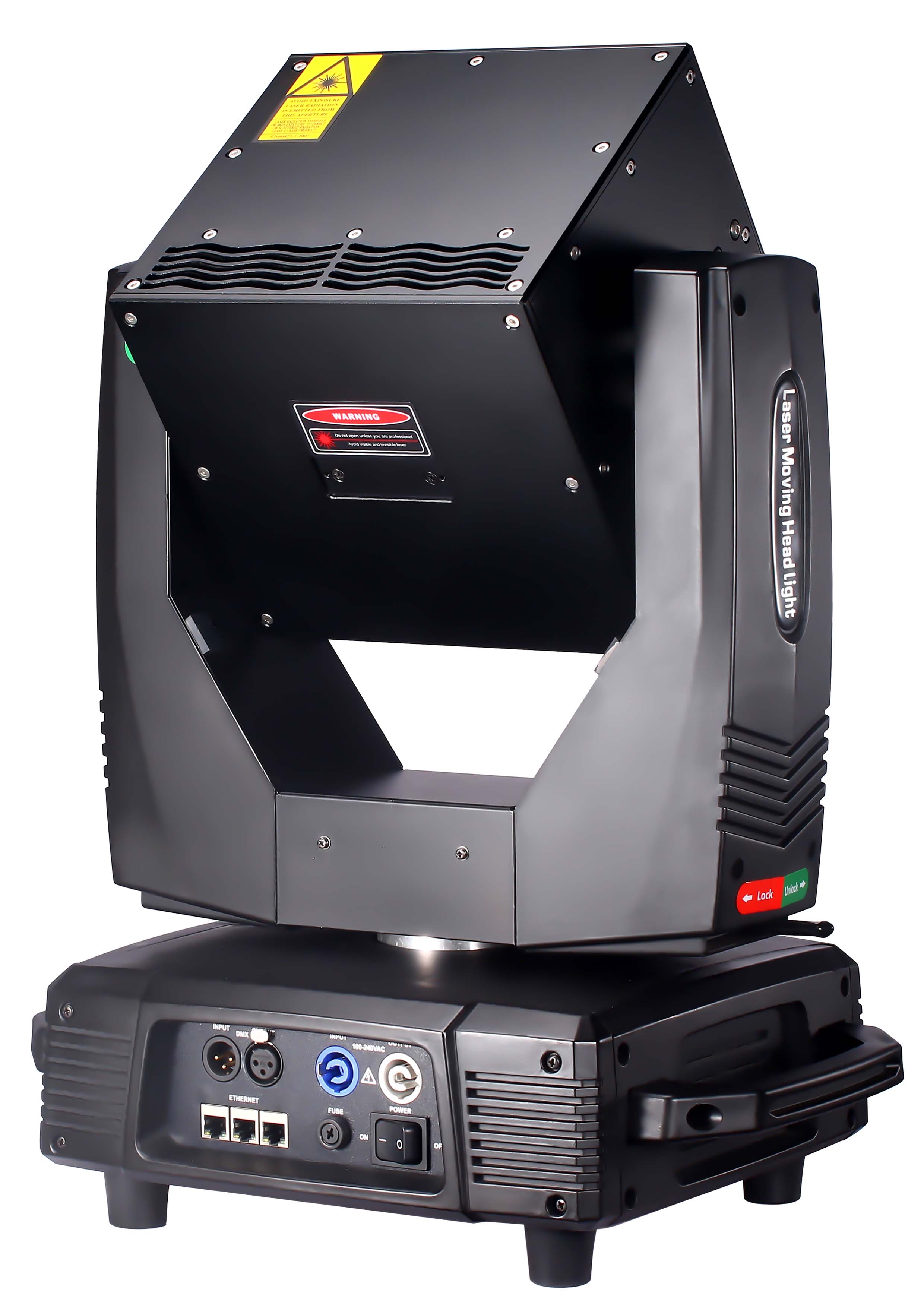

MH10 Series Moving Head Full-Color Laser Light Adopting newly designed semiconductor laser modules with optimized wavelengths, the redesigned modules improve reliability, stability and service life of the laser. It delivers sharp, powerful beams and vivid colors. Equipped with a high-quality power system featuring ultra-low failure rate, it upgrades the driver board and temperature control technology to enhance the precision and stability of the drive system. With long service life and low maintenance requirements, it is suitable for touring events, rental business and permanent indoor installations.
Compatibility control：
Product Technical Parameters：
Source/Type：
Semiconductor laser diode | IP60 | Full-colour RGB laser
Wavelengths [(nm), ±5nm]：
R638/G525/B450
Output Power：
3W/3W/4W
Beam size [mm]：
5.5x5
Beam divergence [mrad]：
<1.2
X-Y scanners：
35KPPS@8° MAX50°
System Control：
FB4(ArtNet, DMX, Lighting Console or Autoplay)
Operation Temperature：
0°C-40℃
Max. power consumption [VA]：
320
Input Voltage Range ：
90-250VAC 50/60Hz
Weight [kg]：
21.5
Size [WxHxD, mm]：
427x545x376
HW features：
All basic system settings can be configured via the system control interface, including power adjustment for each colour, X/Y axis inversion, as well as X/Y axis image size and position parameters.
Laser Class：
Class 4
Control Protocols：
International standard DMX512 protocol
Pan/Tilt Resolution：
16bit
Pan Range：
0°~540°
Tilt Range：
0°~210°

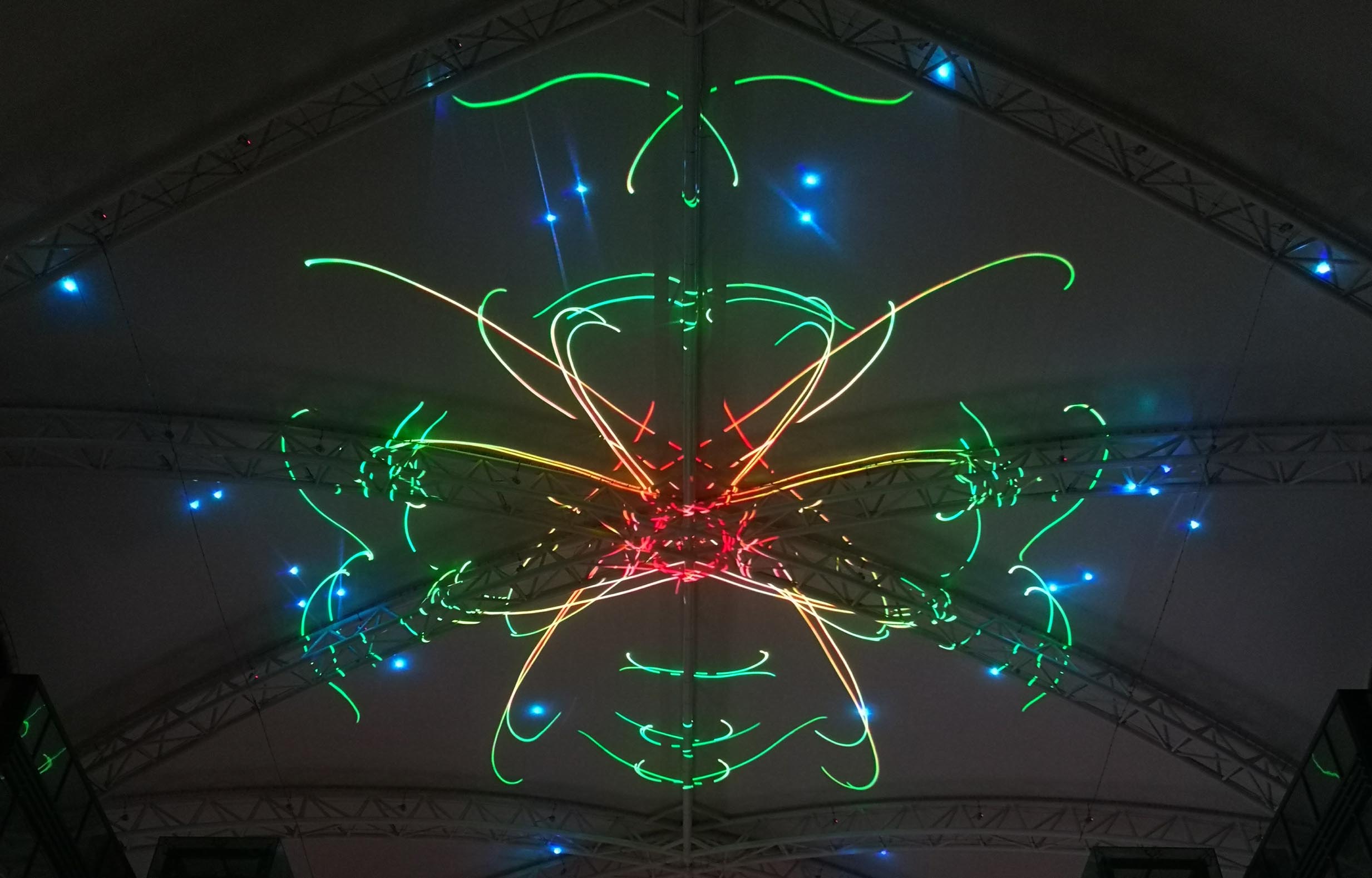

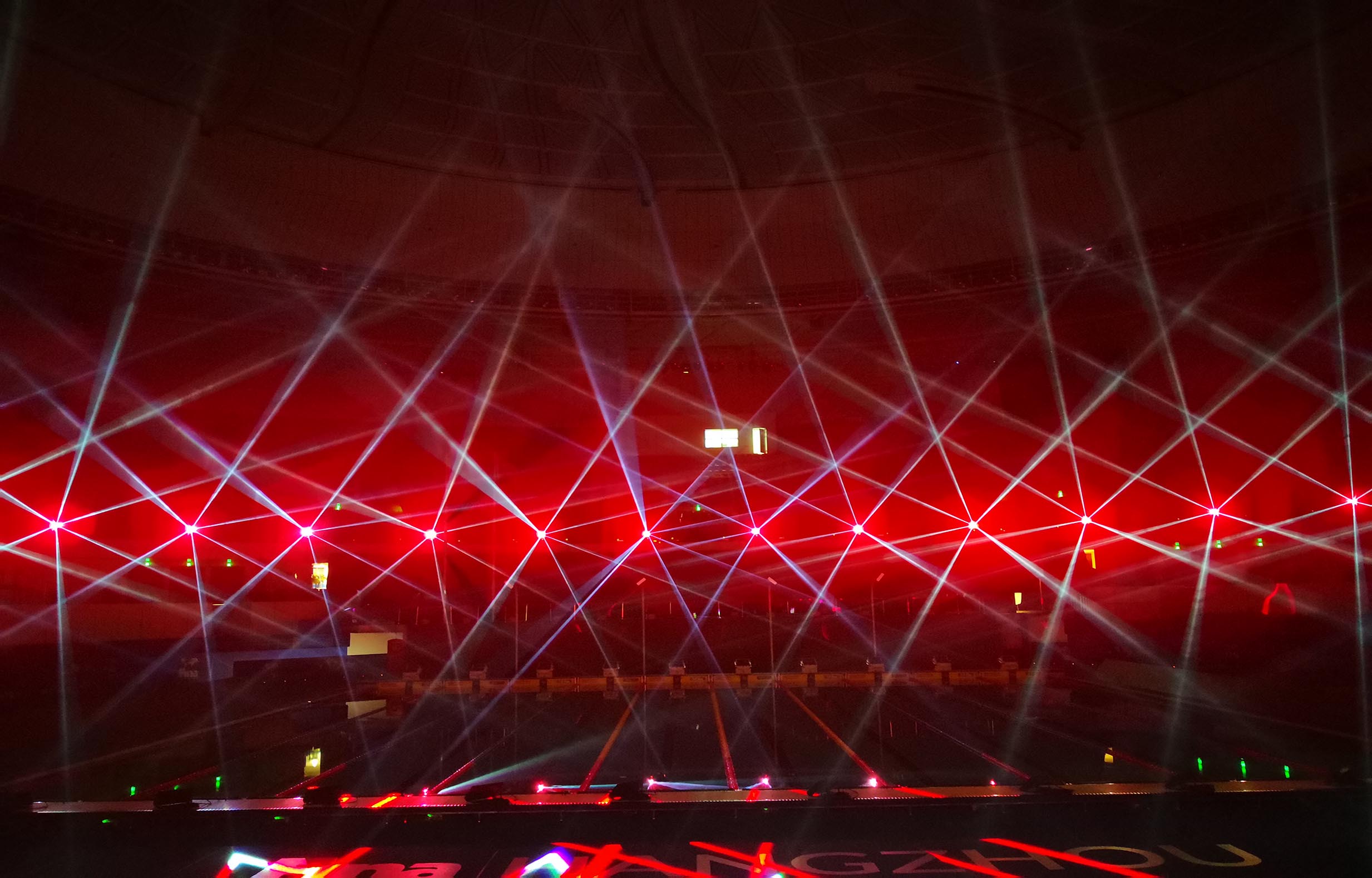

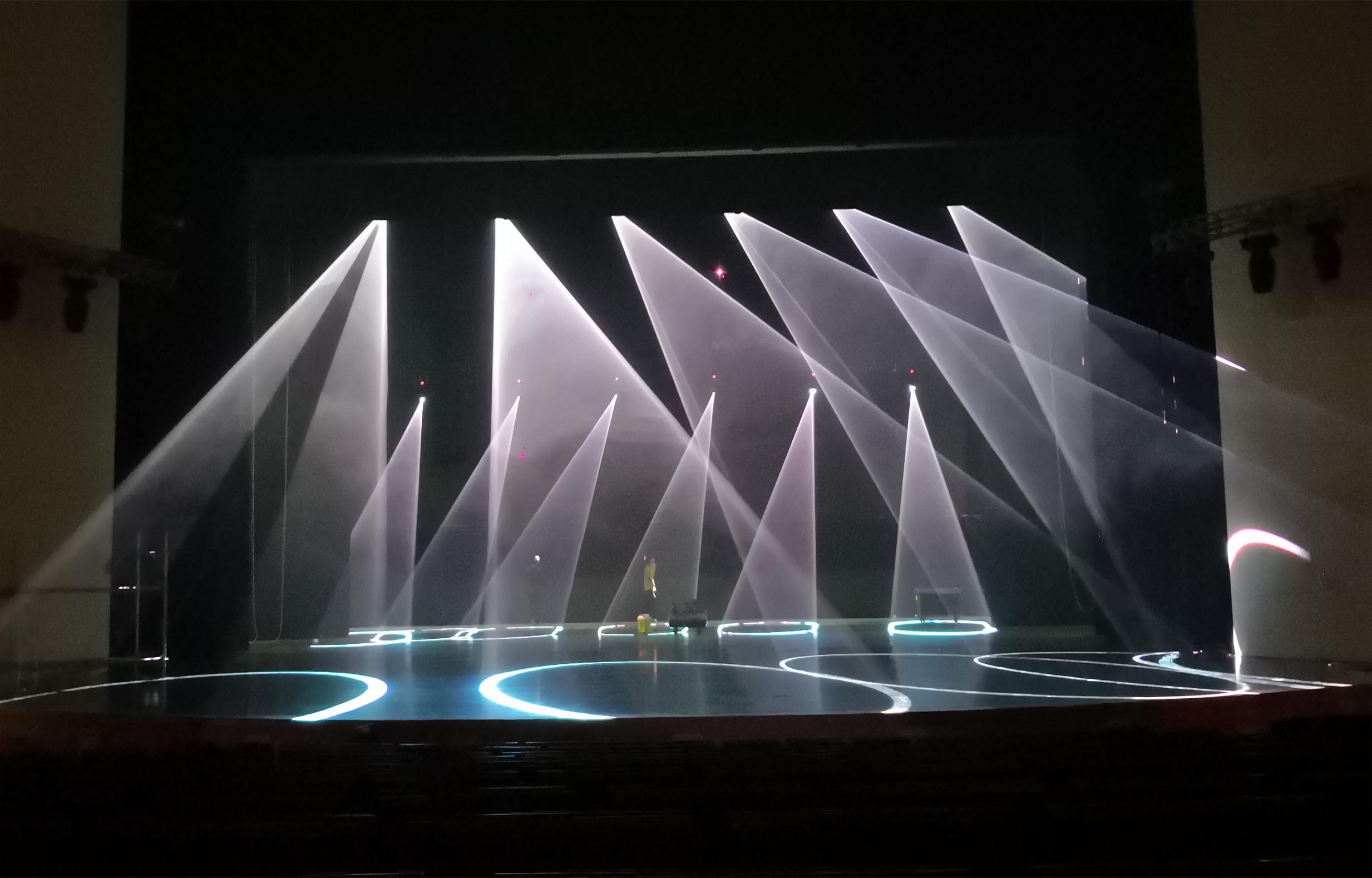

Rendering：
Product Video：

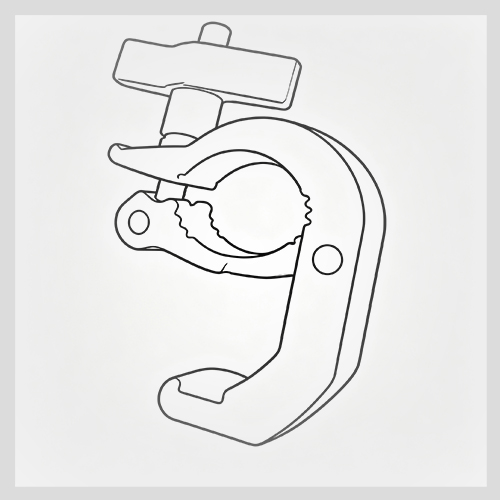

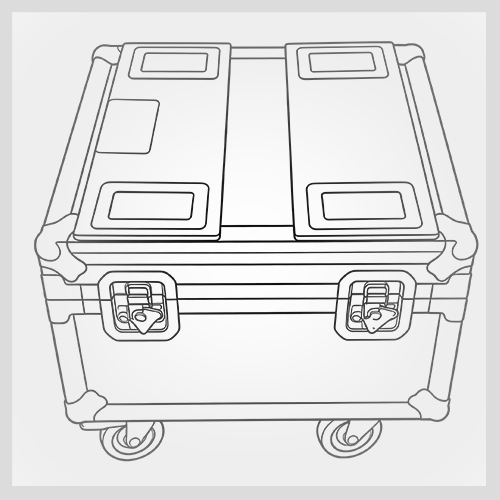

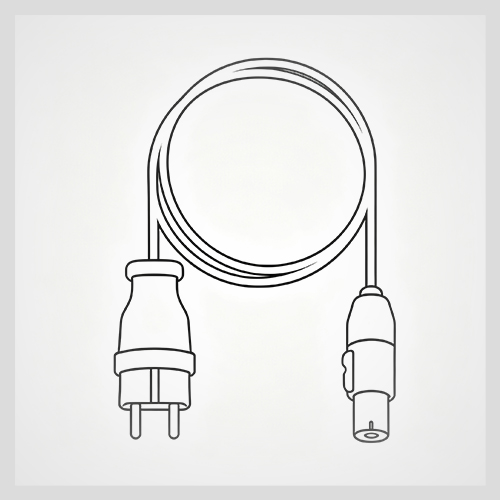

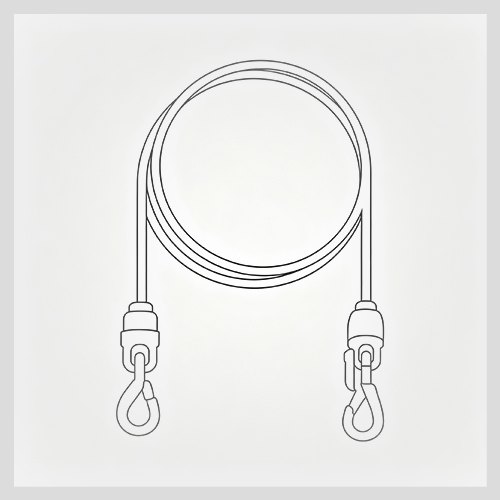

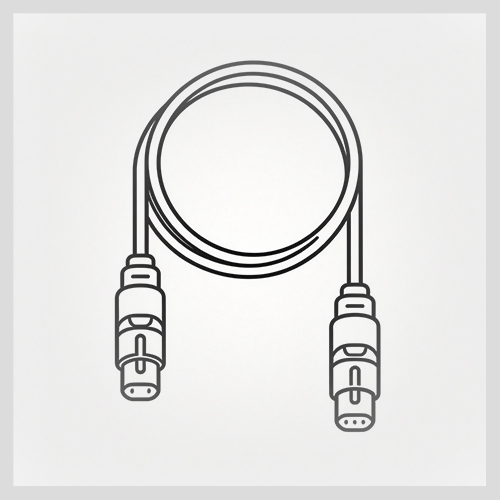

Related Accessories：
