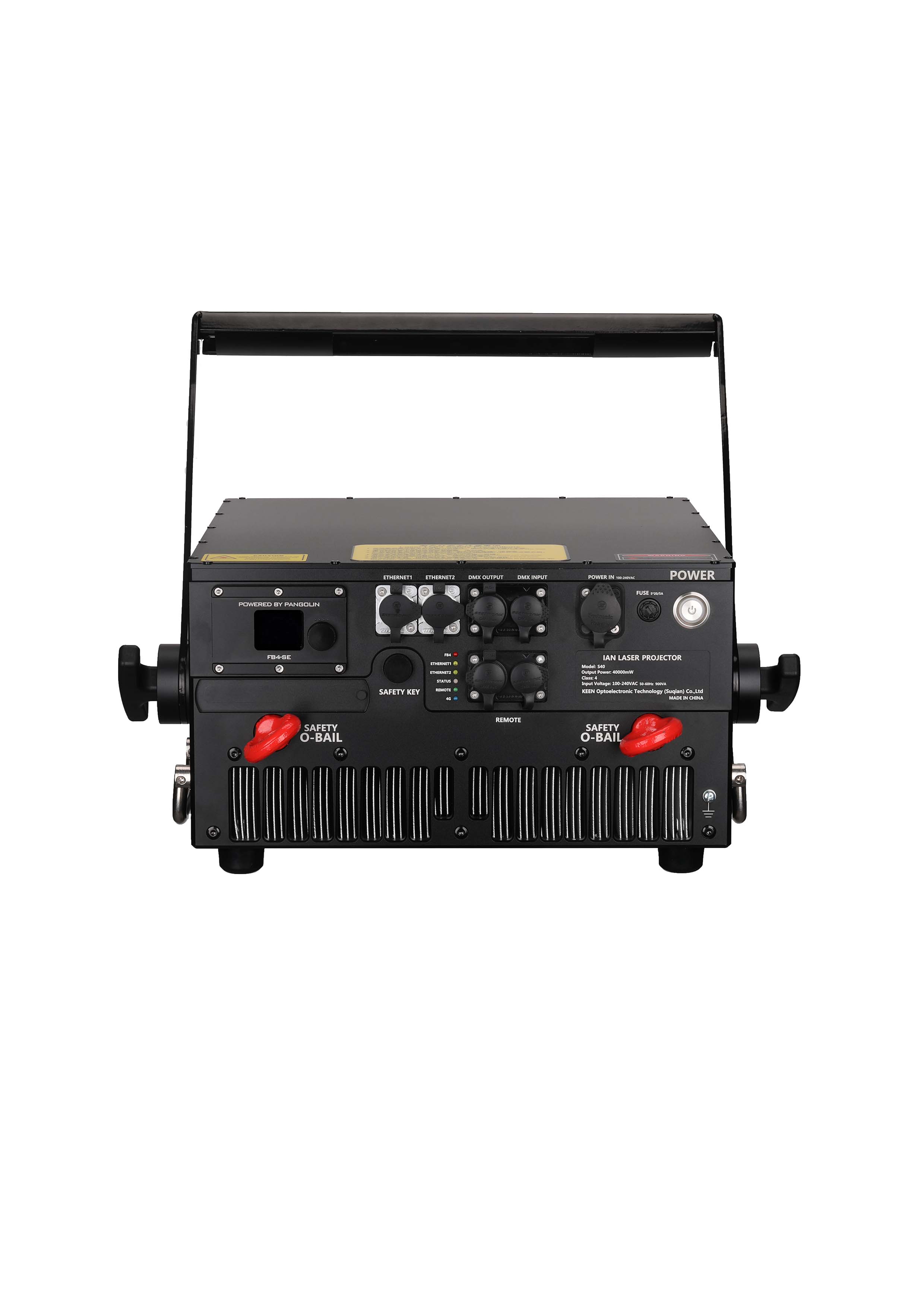

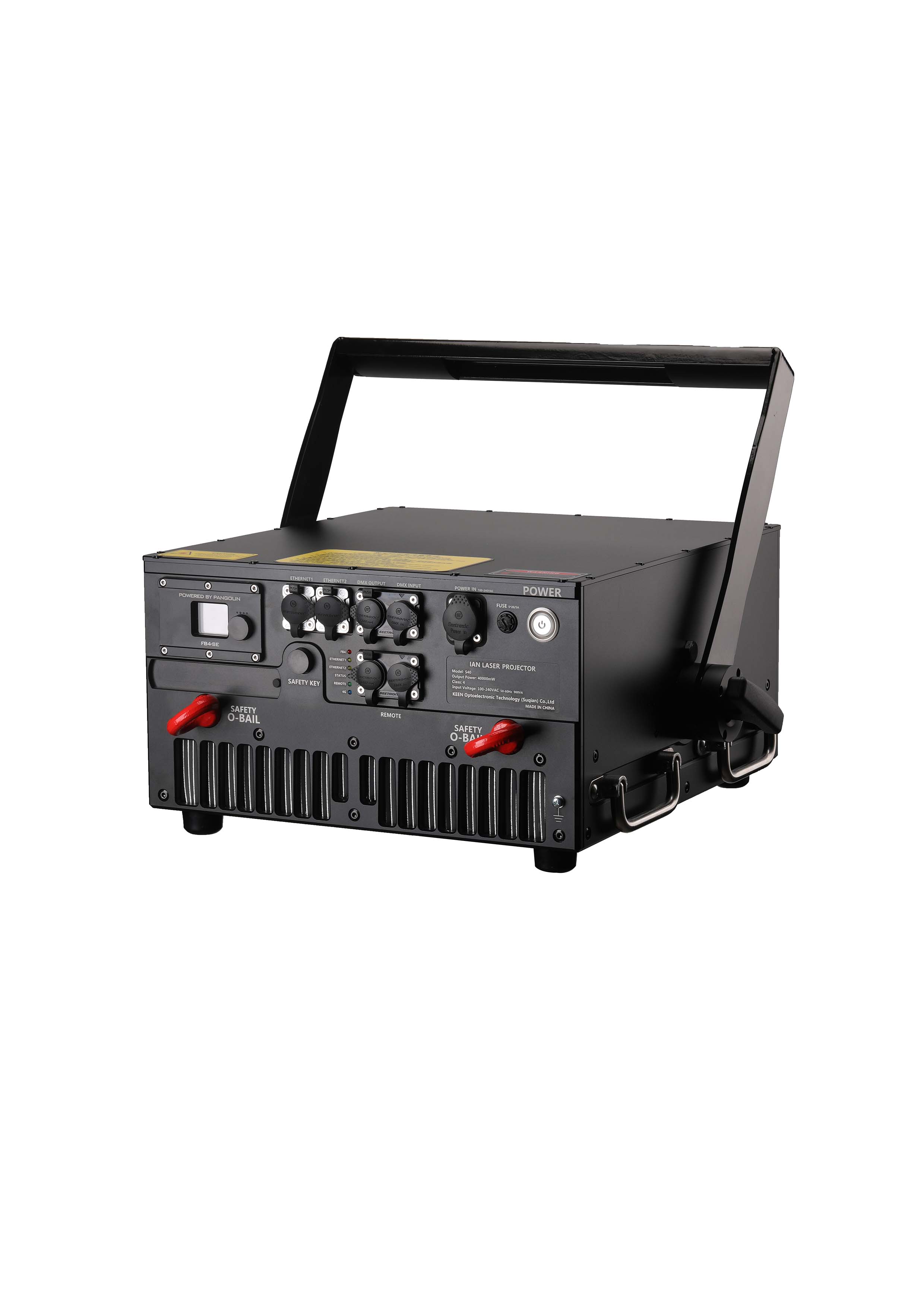

The Sword Series S40 laser system adopts a sealed housing design, achieving an IP65 rating for dust and water protection. To ensure efficient heat dissipation of laser diodes during operation, indium is used to fill the microscopic gaps between laser diodes and the heat sink. By precise thermal power calculation and rational design of the heat sink area and bottom radiator structure, excellent heat dissipation performance is realized. This greatly improves the operational stability of the laser and significantly reduces maintenance requirements. Each internal module of the laser unit is equipped with an independent power supply to enhance circuit stability. Built with an FB4 interface, the S40 supports multiple control options including DMX, and direct PC control via Ethernet (compatible with QuickShow and BEYOND software). Safety features include a European-standard remote emergency stop switch and a physical shutter. This system is suitable for a wide range of professional projects, especially medium and large-scale stage performances, large disco venues and various large party environments.
Compatibility control：
Product Technical Parameters：
Source/Type：
LD laser diode | IP65 | Full-colour RGB laser
Wavelengths [(nm), ±5nm]：
R638/G525/B455
Output Power R/G/B：
10W/11W/19W
Beam size [mm]：
7x6.5
Beam divergence [mrad]：
<1.2
X-Y scanners：
35Kpps@8°
System Control：
FB4(ArtNet, DMX | PC, Lighting Console or Autoplay)
Operation temperature [°C] ：
0°C-40℃
Max. power consumption [VA]：
880
Power requirements [V] | Input：
90-250VAC 50/60Hz
Weight [kg]：
26.5
Size [WxHxD, mm]：
484x217x468(H403/Bracket)
HW features：
All basic system settings can be configured via the system control interface, including power adjustment for each colour, X/Y axis inversion, as well as X/Y axis image size and position parameters.
Safety：

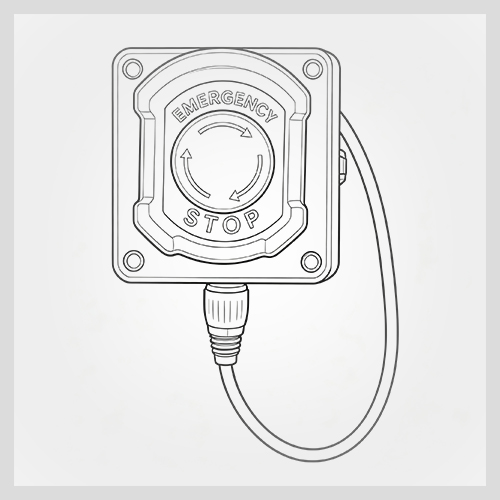

Key Switch + Mechanical Shutter (<20ms Response) + Optional Remote E-Stop (Daisy-chain Capable)
Rendering：
Product Video：

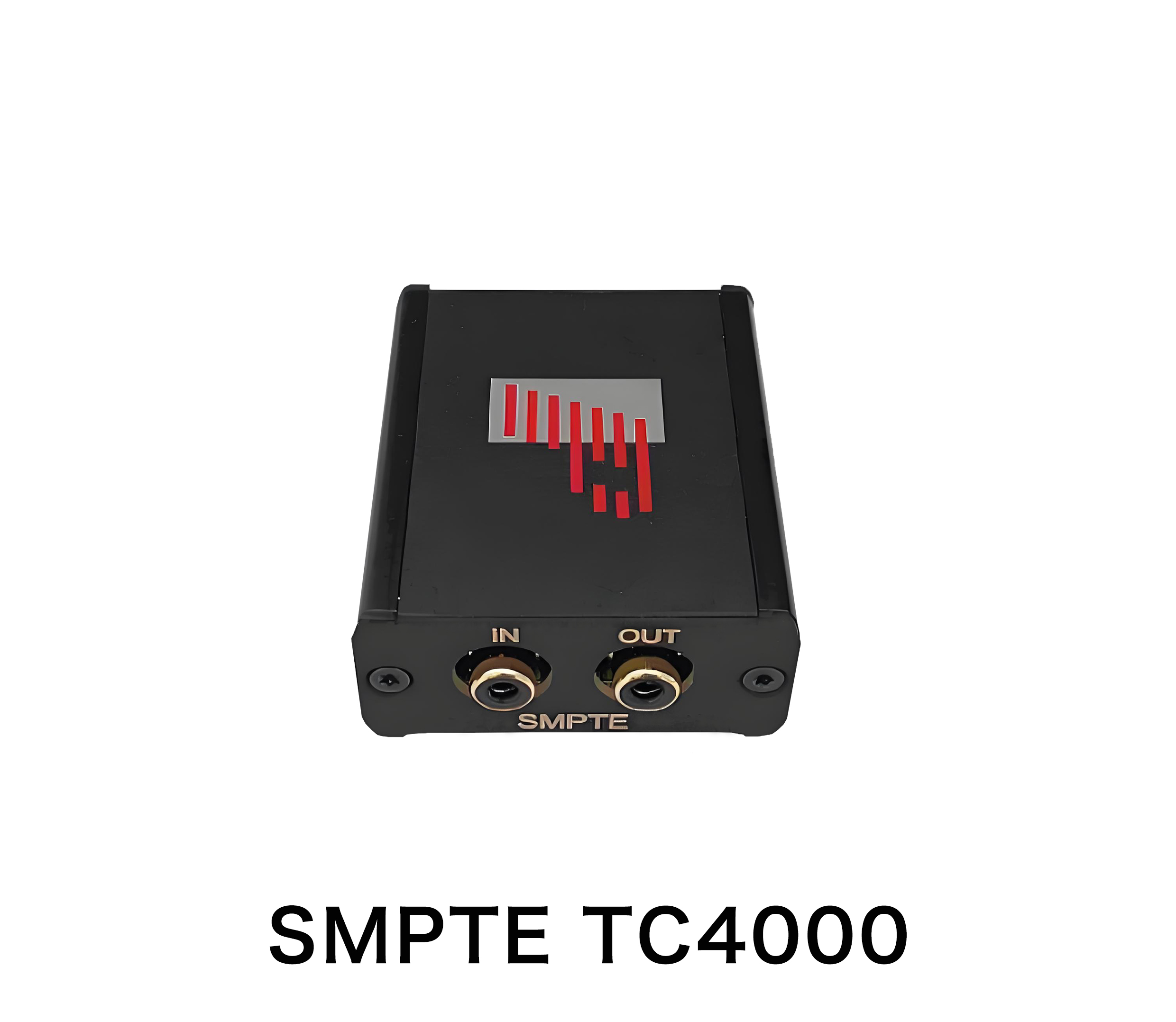

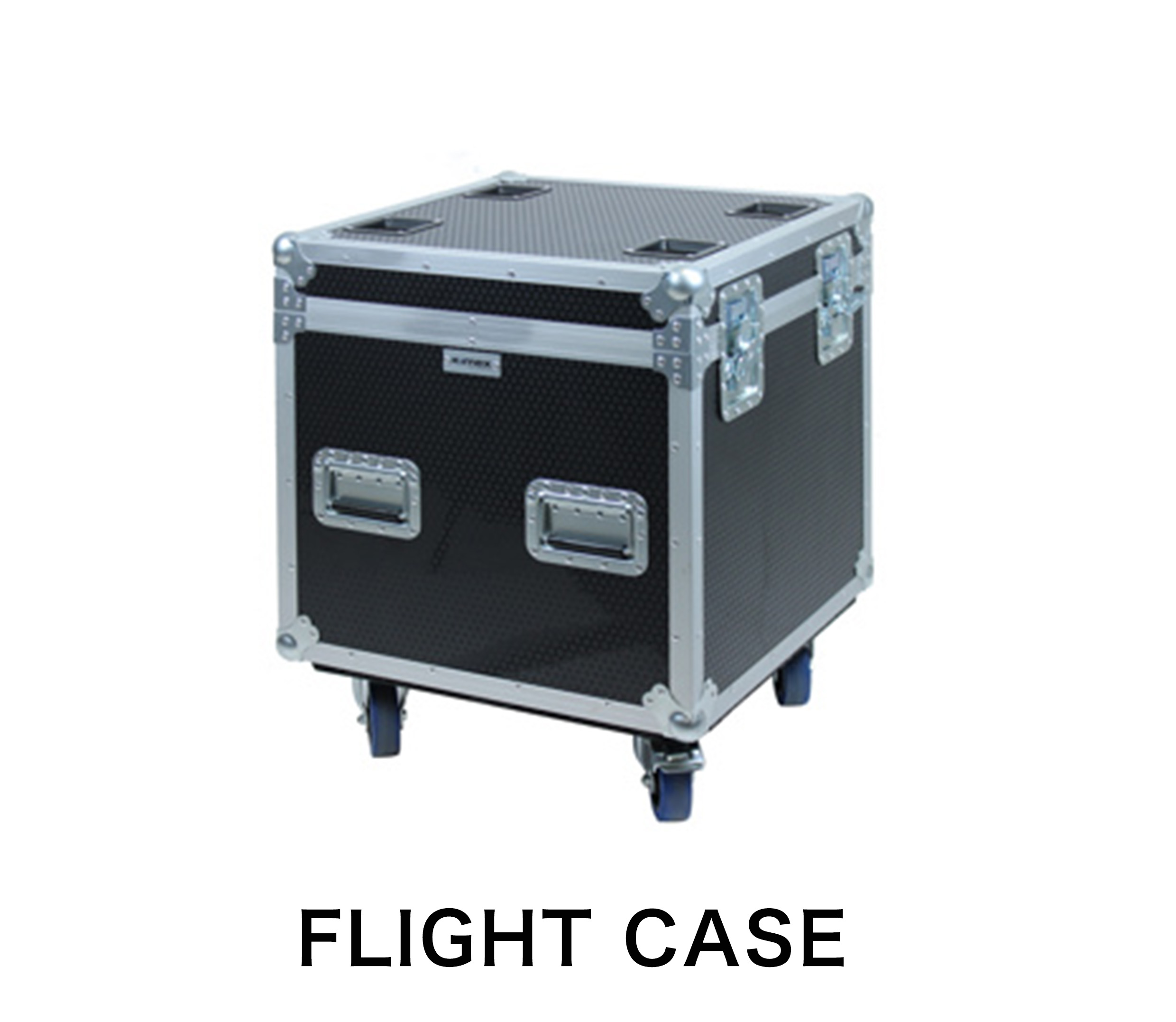

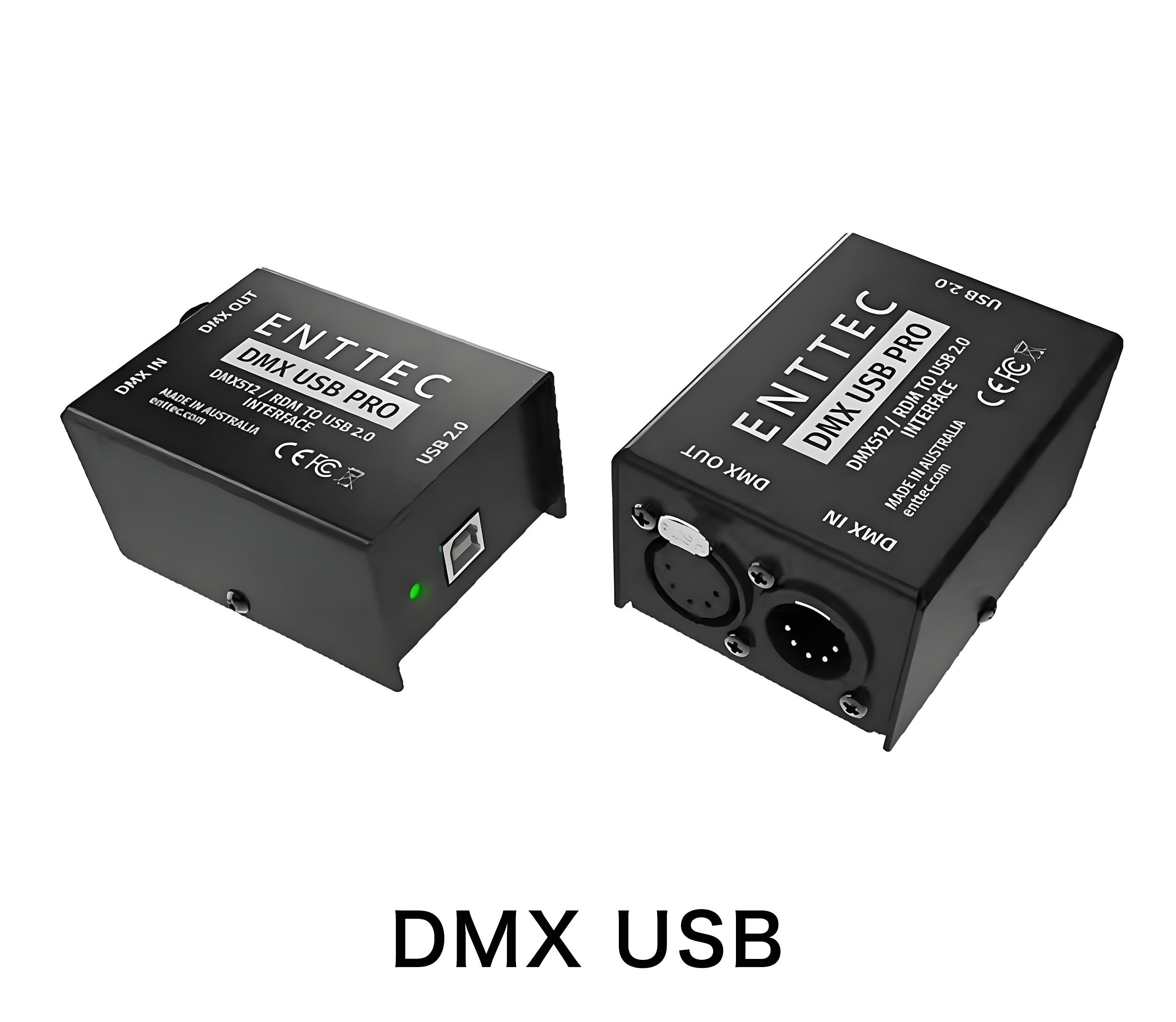

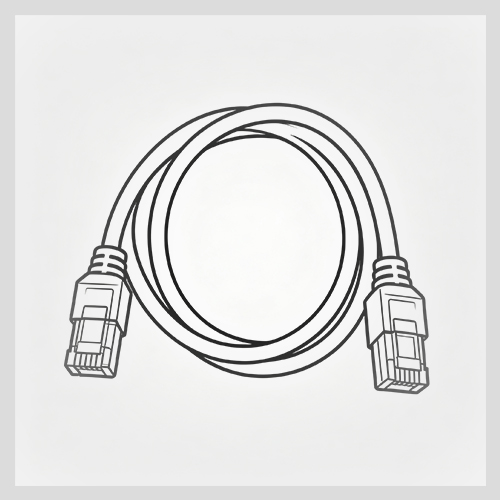

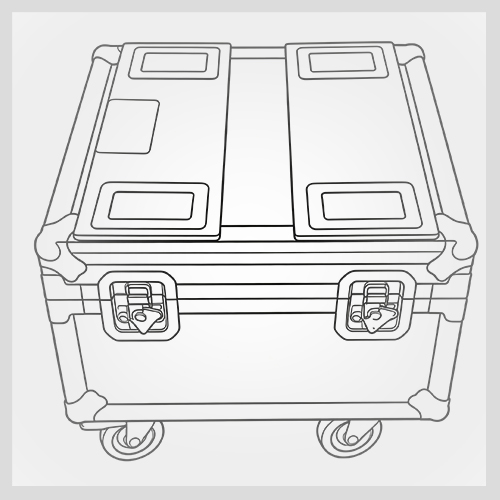

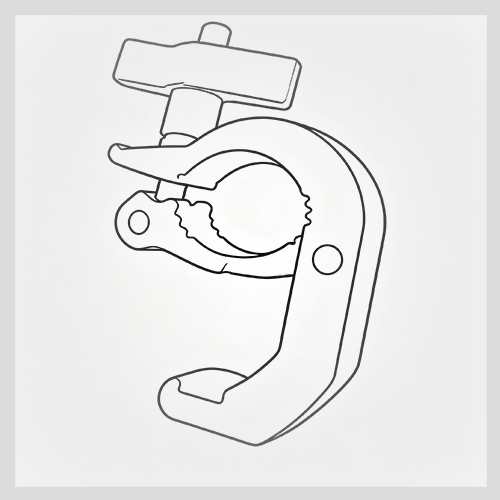

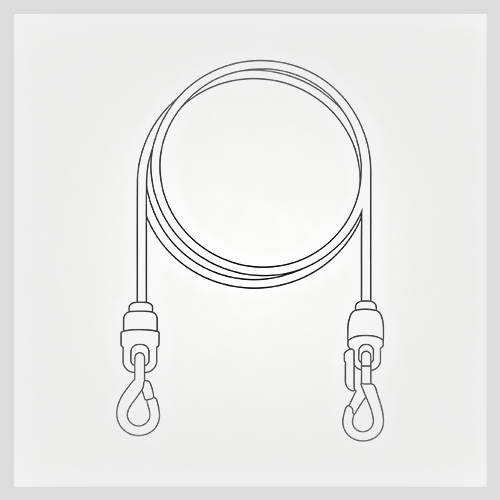

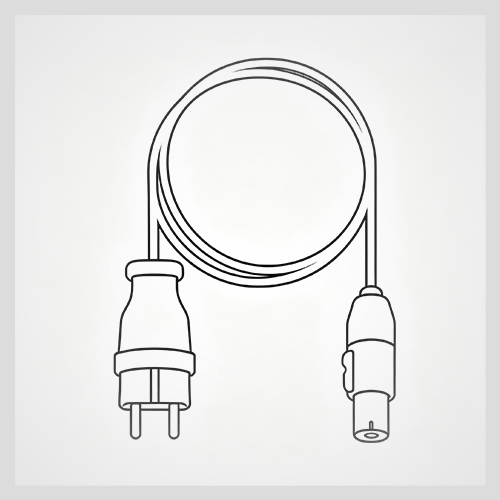

Related Accessories：
